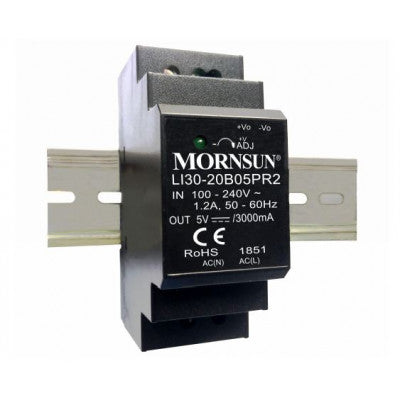

LI30-20B05PR2
Mornsun’s AC-DC converter for standard DIN-rail mounting
- Type: DIN Rail Single Output
- Output Power: 15W
- Series: LI30-20B
- Part Number: LI30-20B05PR2
- Mount: DIN-Rail
- IP Level: Non-Waterproof
- Output Voltage: 5V
- Output Current: 3A
Features
- Universal 85 - 264VAC or 120 - 370VDC Input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -40? to +70?
- High I/O isolation test voltage up to 4000VAC
The LI30-20B05PR2 AC-DC converters from Mornsun offer a high level of stability and noise immunity. They are compliant with international IEC62368 standards for EMC and are safety approved to IEC/EN61000-4, CISPR32, EN55032, UL62368, IEC62368, and EN62368. These lightweight converters have an extremely compact design, making them ideal for industrial control equipment machinery and applications in harsh environments.
Detailed Specifications
- Input voltage range: 85-264VAC; 120-370VDC
- Inrush current (max.): Cold start, 45A at 230VAC
- Output voltage adjustable range: 4.9-5.5V
- Efficiency at 230VAC: 82%
- Max. capacitive load: 12000µF
- Input current (max.): 0.5A at 230VAC
- Short circuit protection: Hiccup, continuous, self-recovery
- Over-current protection: ?120% Io, self-recovery
- Withstand voltage: 300VAC
- Working temperature: -40 - 70°C
- Connection: Terminal block
- Package dimensions: 92.66 x 35 x 58 mm
- Weight: 115 gm
- Cooling method: Free air convection
- Case material: Plastic, heat-resistant (UL94V-0)
- MTBF: >300000 Hrs
- Safety class: CLASS II
- Safety standards: UL62368/EN62368/IEC62368
- EMC standards: CISPR32/EN55032 CLASS B, CISPR32/EN55032 CLASS B, IEC/EN61000-4-3 10V/m
- Certification: CE, RoHS
- Warranty: 3 years
* Images are for illustration only; actual product may vary.
