LI150-20B24PR2
Mornsun’s AC-DC series for standard DIN-rail mounting
- Type: DIN Rail Single Output
- Output Power: 150W
- Part Number: LI150-20B24PR2
- Mount: DIN-Rail
- IP Level: Non-Waterproof
- Output Voltage: 24V
- Output Current: 6.25A
Features
- Universal 85-264VAC or 120-370VDC input voltage
- Withstand 300VAC surge input for 5s
- Operating ambient temperature range: -30?to+70?
- High I/O isolation test voltage up to 4000VAC

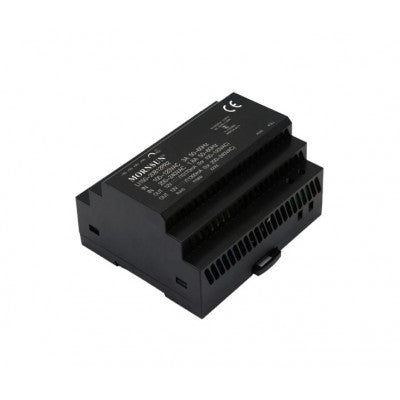

The LI150-20B24PR2 from Mornsun is a cost-effective and energy-efficient AC-DC converter designed for standard DIN-rail mounting. This product offers high stability and noise immunity, meeting international EMC and safety standards such as IEC62368, CISPR32, EN55032, UL/EN/IEC62368, IEC/EN60335, IEC61558, and UL61010. With a lightweight and compact design, this converter is ideal for industrial control equipment machinery and applications in harsh environments.
The LI150-20B24PR2 features a DIN Rail Single Output type with an output power of 150W. It has an output voltage of 24V and an output current of 6.25A. The product is mountable on DIN-Rail and has a non-waterproof IP level.
Key features of the LI150-20B24PR2 include a wide input voltage range, surge input withstand capability, high temperature operation, high isolation test voltage, and various protection features such as over-current and over-temperature protection. The converter is designed for high efficiency, reliability, and low standby power consumption. It is also mountable on DIN rail TS35X7.5/TS35X15 with an ultra-thin design.
For more detailed information, you can download the datasheet.
Images are for illustration only; actual product may vary.
