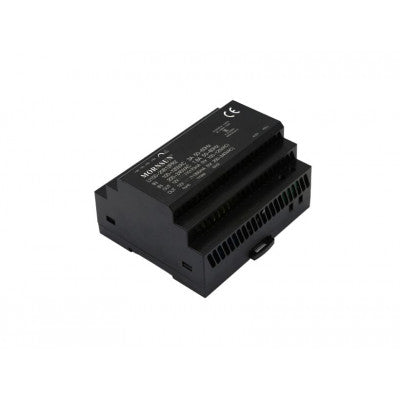

LI150-20B12PR2
Mornsun’s AC-DC series for standard DIN-rail mounting
- Type: DIN Rail Single Output
- Output Power: 135.6W
- Series: LI150-20B
- Part Number: LI150-20B12PR2
- Mount: DIN-Rail
- IP Level: Non-Waterproof
- Output Voltage: 12V
- Output Current: 11.3A
Features
- Universal 85-264VAC or 120-370VDC input voltage
- Withstand 300VAC surge input for 5s
- Operating ambient temperature range: -30°C to +70°C
- High I/O isolation test voltage up to 4000VAC
The LI150-20B12PR2 from Mornsun is a cost-effective and energy-efficient AC-DC converter designed for standard DIN-rail mounting. This product offers high stability and noise immunity, meeting international EMC and safety standards such as IEC62368, CISPR32, EN55032, UL/EN/IEC62368, IEC/EN60335, IEC61558, and UL61010. With a lightweight and compact design, this converter is ideal for industrial control equipment machinery and applications in harsh environments.
The converter features a universal input voltage range, high surge input withstand capability, and a wide operating temperature range. It also provides high I/O isolation, over-voltage protection, and various other safety features. The DIN rail mountable design ensures easy installation and space-saving benefits.
For more detailed information, you can download the datasheet here.
* Images are for illustration only; actual product may vary.
