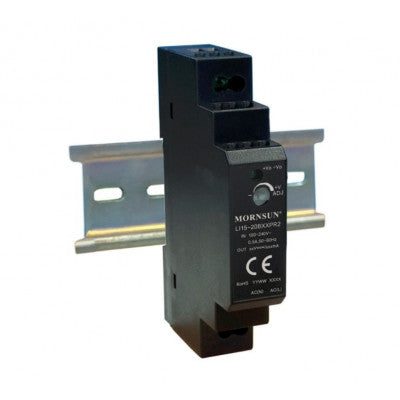

LI15-20B05PR2
Mornsun’s AC-DC series for standard DIN-rail mounting
- Type: DIN Rail Single Output
- Output Power: 12W
- Series: LI15-20B
- Part Number: LI15-20B05PR2
- Mount: DIN-Rail
- IP Level: Non-Waterproof
- Output Voltage: 5V
- Output Current: 2.4A
Features
- Universal 85 - 264VAC or 120 - 370VDC Input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -40°C to +70°C
- High I/O isolation test voltage up to 4000VAC
The LI15-20B05PR2 from Mornsun is a cost-effective and energy-efficient AC-DC converter designed for standard DIN-rail mounting. It offers high stability and noise immunity, meeting international EMC and safety standards such as IEC62368, CISPR32/EN55032, UL62368, EN62368, IEC62368, IEC/EN61010, IEC/EN61558, and IEC60335. With a lightweight and compact design, this converter is ideal for industrial control equipment machinery and applications in harsh environments.
The product features a universal input voltage range, high efficiency, low standby power consumption, and various protection mechanisms including output short circuit, over-current, and over-voltage protection. It is mountable on DIN rail TS35X7.5/TS35X15.
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
*Images are for illustration only; actual product may vary.
