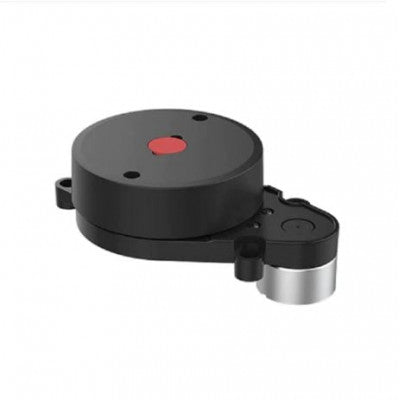

LD Robot D100 Triangulation Lidar
The LD ROBOT D100 LiDAR Kit offers high-performance light-sensitive CCD and 360-degree laser scanning.
- Distance measuring range: 0.15 - 8 m
- Scanning frequency: 6 Hz
- Measurement frequency: 2300 times/S
- Technology: Triangulation
- Laser safety: FDA Class I
- Light-sensitive CCD: High-performance
Features:
- High-performance light-sensitive CCD
- Thin, compact, and stylish appearance
- 360-degree laser scanning
- Longer-range environmental sensing
With the optimized algorithm, the longer-range can sense the environmental information in a longer range, ensuring the robot's ability to cruise and build maps in a large area and obtain more environmental profile information.
LD014 rotates clockwise in the ranging core to achieve 360-degree scanning and ranging detection of the surrounding environment, obtaining the information of the plane point cloud map of the space where it is located.
The sampling frequency of LiDAR is as high as 2300 times/S for full ranging, easily scanning the outline of the scene within the ranging range and realizing fast and accurate map building.
Based on traditional triangulation radar technology, LD14 achieves 360-degree environment detection, paired with LDROBOT first-class algorithm logic for high-precision map construction and obstacle detection for the robot.
With a thin and light structure design, the product height is only 37 mm while ensuring performance, smaller size, lower power consumption, easier installation, and adaptability to more robot types.
In order to ensure the safety of the product for the human body and pets, a low-power infrared laser emitter is used as the emission light source and driven by modulated pulse, conforming to the FDA Class I human eye safety level.
LD14 adopts high-performance light-sensitive CCD, providing higher efficiency, more stable performance, denser collection of information points, and more accurate map building.
Pin Configuration:
- Red wire: 5V
- Yellow wire: Ground
- Black wire: Rx
- Green wire: Tx
Packages Includes:
- 1 x LD Robot D100 Triangulation Lidar
Images are for illustration only; actual product may vary.
