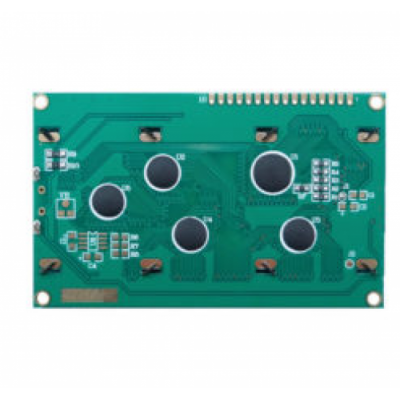

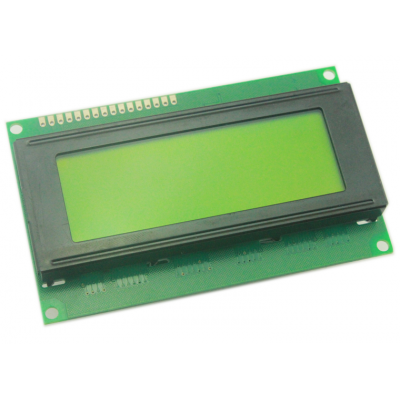

LCD2004 Parallel LCD Display Yellow Backlight
A simple and cost-effective solution for adding a 20x4 Black on RGB Liquid Crystal Display to your project.
- Model: LCD2004
- Characters: 20
- Character Color: Black
- Backlight: Yellow
- Input Voltage (V): 5
- Length (mm): 60
- Width (mm): 98
- Height (mm): 12
- Weight (gm): 70
Top Features:
- 20 characters wide, 4 rows
- Black text on the yellow background
- Low-power consumption with built-in controller
- Single LED backlight included, dimmable with a resistor or PWM
The LCD2004 Parallel LCD Display with Yellow Backlight is a fantastic choice for Arduino-based projects. It offers a clear 20x4 display with high contrast black text on a yellow background. This module is easy to interface with an MCU and can be fully controlled with only 6 digital lines. The single LED backlight can be dimmed easily, making it versatile for various lighting conditions.
If you're concerned about pin usage on your Arduino, an I2C adapter can be soldered onto the display pins, reducing the required connections to just the I2C pins. This simplifies the setup process and requires minimal coding.
The display can showcase simple text, numerical values from sensors like temperature or pressure, or the number of cycles performed by the Arduino. Enhance your projects with the functionality and visual output provided by the LCD2004 Parallel LCD Display.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
