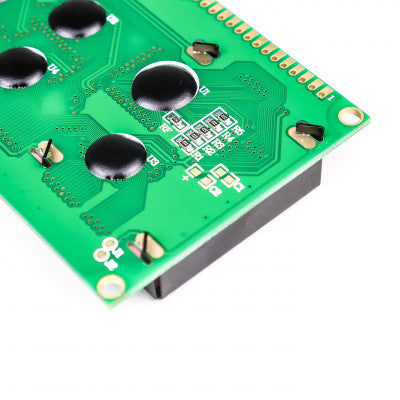

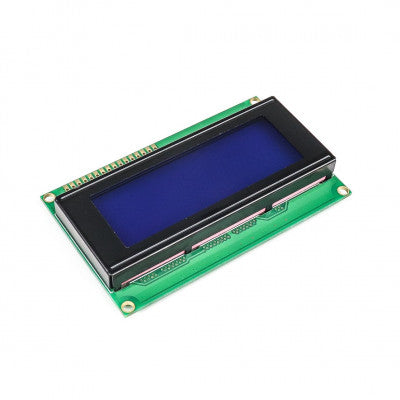

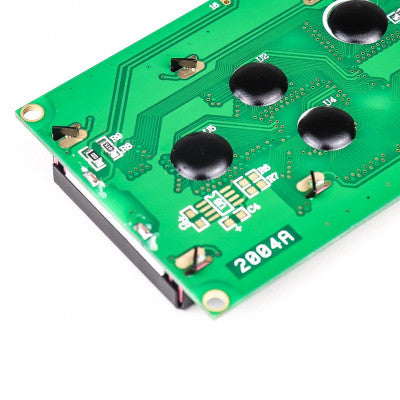

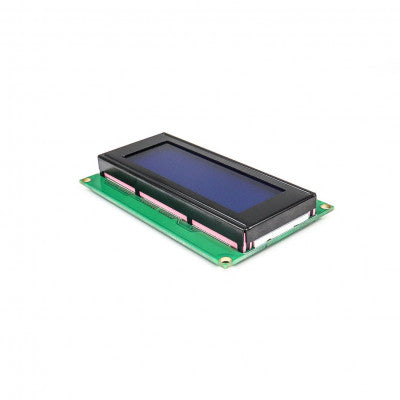

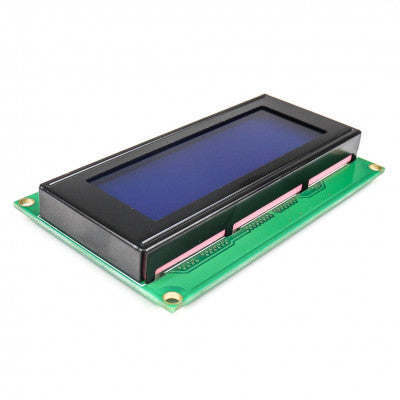

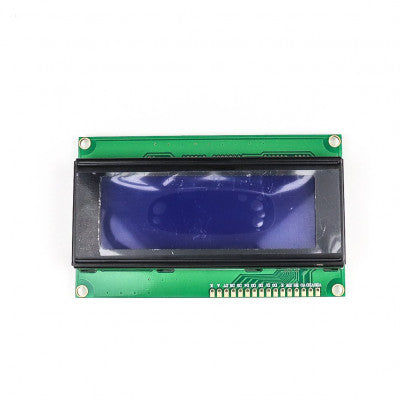

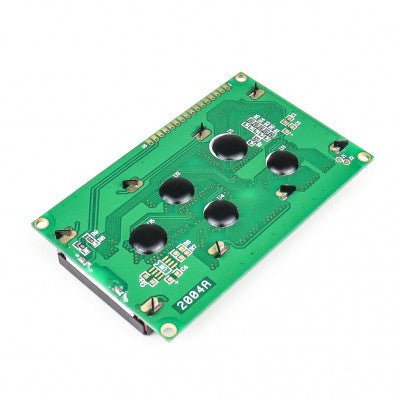

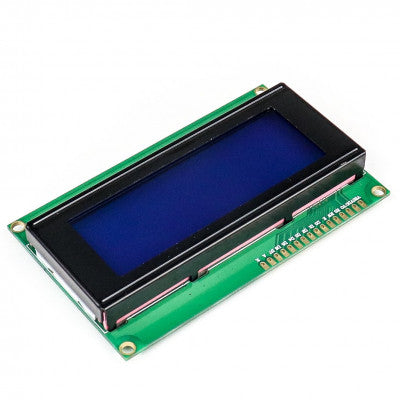

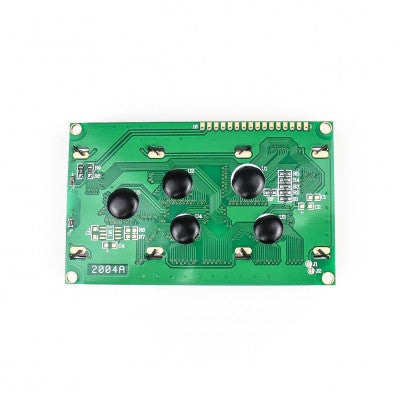

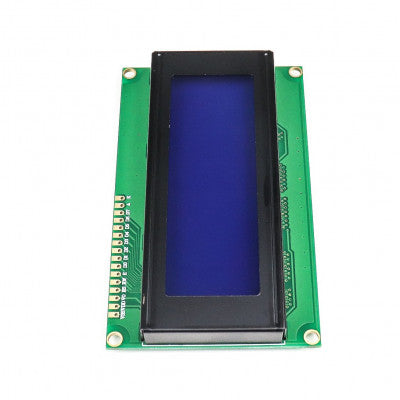

LCD2004 Parallel LCD Display
A simple and cost-effective solution for adding a 20x4 White on RGB Liquid Crystal Display to your project.
- Model: LCD2004
- Characters: 20
- Character Color: White
- Backlight: Blue
- Input Voltage (V): 5
- Length (mm): 60
- Width (mm): 98
- Height (mm): 12
- Weight (gm): 70
Top Features:
- 20 characters wide, 4 rows
- White text on the blue background
- Low-power consumption with built-in controller
- Single LED backlight included, dimmable with a resistor or PWM
This LCD2004 Parallel LCD Display is a great blue backlight LCD display, perfect for Arduino-based projects. It can easily interface with an MCU and requires only 6 digital lines for full control. The display can show simple text or numerical values from sensors like temperature or pressure.
While it typically uses 8 Arduino pins, an I2C adapter can be soldered onto the display for simplified connection, requiring only the I2C pins. This setup reduces the pin usage and simplifies the coding process.
For a hassle-free experience, consider the LCD2004 Parallel LCD Display with IIC/I2C interface, which comes with a pre-assembled I2C adapter.
Images are for illustration only; actual product may vary.
