L298 Dual Full-Bridge Driver
High voltage, high current driver for inductive loads
- VS-Power Supply: 50V
- VSS-Logic Supply Voltage: 7V
- VI,Ven- Input and Enable Voltage: -0.3 to 7V
- IO-Peak Output Current (each Channel): 3A
- Vsens-Sensing Voltage: -1 to 2.3V
- Ptot-Total Power Dissipation (Tcase = 75°C): 25W
- Top Junction Operating Temperature: -25 to 130°C
- Tstg, Tj-Storage and Junction Temperature: -40 to 150°C
Features:
- Operating supply voltage up to 46V
- Total DC current up to 4A
- Low saturation voltage
- Over temperature protection

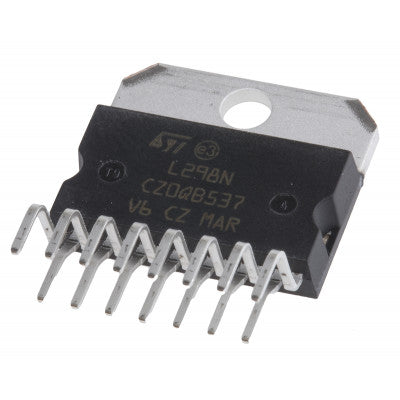

The L298 is an integrated monolithic circuit in a 15-lead Multiwatt and PowerSO20 packages. It is a high voltage, high current dual full-bridge driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC, and stepping motors. Two enable inputs are provided to enable or disable the device independently of the input signals. The emitters of the lower transistors of each bridge are connected together, and the corresponding external terminal can be used for the connection of an external sensing resistor. An additional supply input is provided so that the logic works at a lower voltage.
