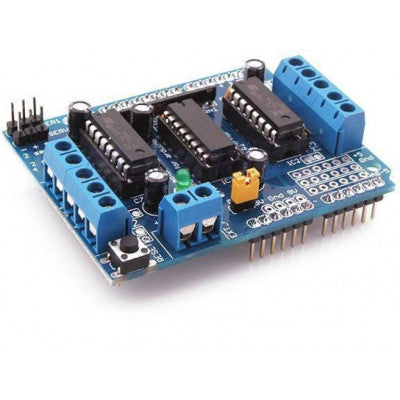

L293D Motor Driver Shield for Arduino
A versatile shield for driving motors and servos in robotic projects.

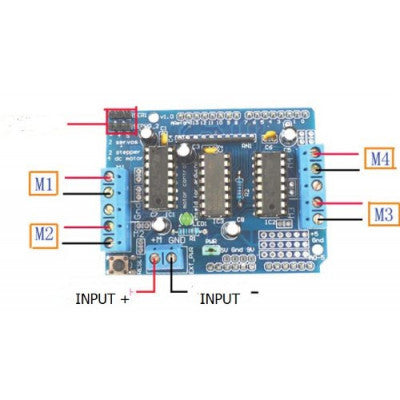

- Connections: 2 servo and 4 motor connectors for DC or stepper motors
- Compatibility: Arduino Mega 1280 & 2560, Diecimila, Duemilanove, and UNO
- Chip: L293D monolithic integrated, high voltage, high current, 4-channel driver
- Maximum Voltage: Up to 36 Volts
- Maximum Current: 600mA per channel
-
Features:
- 2 connections for 5V ‘hobby’ servos
- 4 H-Bridges with 0.6A per bridge (1.2A peak)
- Up to 4 bi-directional DC motors with individual 8-bit speed selection
- Up to 2 stepper motors (unipolar or bipolar)
- Pull down resistors for motor disable during power-up
- Big terminal block connectors for easy wiring
- Arduino reset button on top
- 2-pin terminal block and jumper for external power connection
This Arduino compatible motor Driver shield is a full-featured product that can be used to drive 4 DC motors or two 4-wire steppers and two 5v servos. It drives the DC motor and stepper with the L293D, and it drives the servo with Arduino pin9 and pin10.
The shield contains two L293D motor drivers and one 74HC595 shift register. The shift register expands 3 pins of the Arduino to 8 pins to control the direction of the motor drivers. The output enables the L293D is directly connected to PWM outputs of the Arduino.
