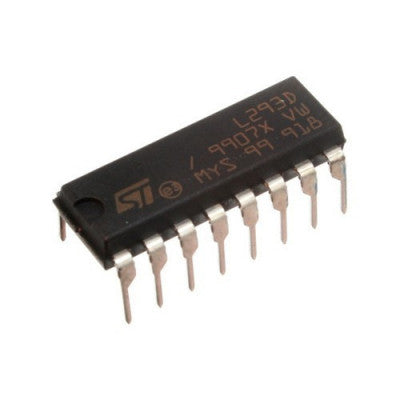

L293D Dual H-Bridge Motor Driver IC
A dual H-bridge motor driver IC for driving inductive loads.
- Featuring Unit Code: L293 and L293D
- Wide Supply-Voltage Range: 4.5 V to 36 V
- Separate Input-Logic Supply
- Internal ESD Protection
- Thermal Shutdown
- High-Noise-Immunity Inputs
- Output Current: 1 A Per Channel (600 mA for L293D)
- Peak Output Current: 2 A Per Channel (1.2 A for L293D)
- Output Clamp Diodes for Inductive Transient Suppression (L293D)
Top Features:
- Wide supply-voltage range
- Internal ESD protection
- High-noise-immunity inputs
- Output clamp diodes for transient suppression
Motor drivers act as current amplifiers by taking a low-current control signal and providing a higher-current signal to drive motors. The L293D IC contains two inbuilt H-bridge driver circuits, allowing simultaneous control of two DC motors in forward and reverse directions based on input logic. Enable pins must be high for motors to operate, and the outputs work in phase with their inputs when enabled.
Designed for driving inductive loads like relays, solenoids, and stepping motors, the L293D is ideal for applications requiring high-current motor control and de-coupling inductive loads from the main unit.
Applications:
- High current motor driver IC
- Dual H-bridge for controlling up to two motors simultaneously
- Ideal for inductive load de-coupling
- Wide voltage range for adaptive control
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or +91-8095406416.
*Images are for illustration only; actual product may vary.
