EDLP Series Micro Diaphragm Pump
A simple and efficient positive displacement pump for various applications.
- Brand: Kamoer
- Model: EDLP600-12A
- Operating Voltage (VDC): 12
- Operating Current (A): 0.3
- Operating Temperature (C): 0 to 40
- Flow Rate (ml/min): 600
- Noise Level (dB): <65
- Length (mm): 63
- Width (mm): 27
- Height (mm): 27
- Weight (gm): 60
- Shipment Weight: 0.064 kg
- Shipment Dimensions: 7 x 3 x 3 cm
Features:
- Maintenance Free
- Robust Construction
- Compact Size
- Low Noise Level
The EDLP series micro diaphragm pumps from Kamoer operate on a simple principle of positive displacement. The rotational power from the motors is converted into vertical movement by an eccentric wheel, which is then transferred to a diaphragm via a connecting rod. This mechanism, in conjunction with inlet and outlet valves, creates a pumping action.
The EDLP600-12A type liquid pump can be mounted in any position and deliver up to 600ml/min when operated on 12V. It is suitable for applications such as watering flowers, aquarium pumps, and water irrigation.

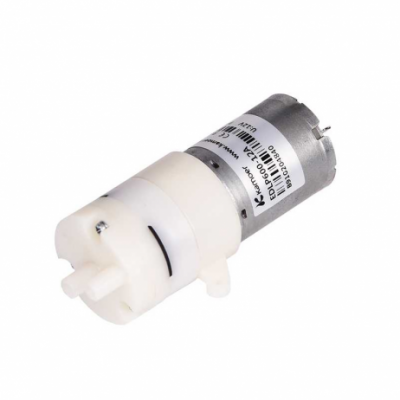

Package Includes: 1 x Kamoer 12V 0.3A 600ml/min diaphragm pump Model EDLP600-12A
* Images are for illustration only; actual product may vary.
