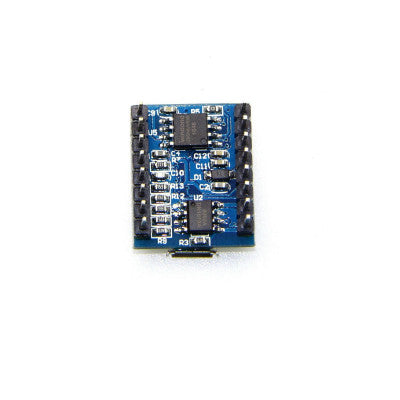

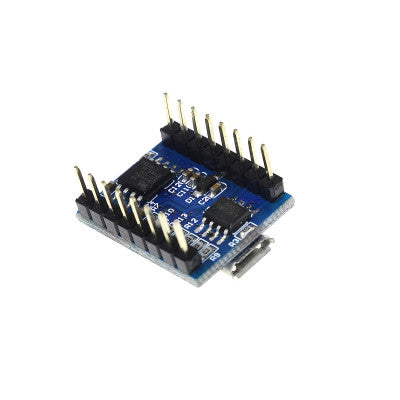

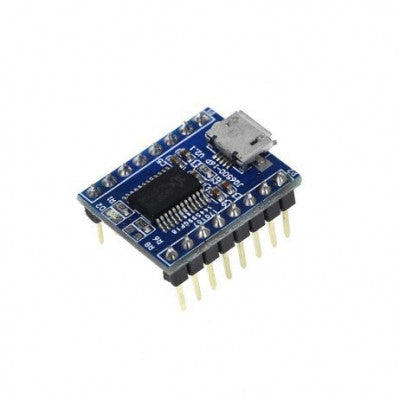

JQ6500 MP3 Chip with Serial Ports
An MP3 chip with integrated hard decoding of MP3 and WMV, designed for fixed voice player applications.
- MP3 file format: Support all bit rate 11172-3 and ISO13813-3 layer3 audio decoding
- Sample rate support (KHZ): 8/11.025/12/16/22.05/24/32/44.1/48
- UART interface: Standard serial port, TTL level, baud rate can be set
- Input voltage: 3.2V-5V (best 4.2V)
- Rated current: 20mA
Top Features:
- Supports sampling rates: 8/11.025/12/16/22.05/24/32/44.1/48
- 24-bit DAC output, dynamic range support 90dB, SNR support 85dB
- Fully supports FAT16, FAT32 file system, maximum support 32G TF card
- Supports 32G U disk, 64M bytes of NOR FLASH
The JQ6500 MP3 chip is a versatile solution for various applications such as car navigation voice broadcast, road transport inspection, and safety prompts at train stations and bus stations. It offers easy-to-use functionality with support for multiple control modes and audio data organization by folder.
Application:
- Car navigation voice broadcast
- Road transport inspection, toll station voice prompts
- Voice prompts for safety inspections at train stations and bus stations
- Voice prompts of power, communications, financial business offices
The chip's deeply customized design ensures stable and reliable performance, making it ideal for low-cost solutions in the fixed voice player field.
