Nema17 0.65N-m Stepper Motor
Precise stepper motor for machines requiring position control.
- Torque: 0.65N-m
- Current: 1.68A per phase
- Type: Brushless DC
- Applications: 3D Printers, CNC Router, Camera Platforms, XYZ Plotters
- Control: Open Loop
-
Features:
- Input pulse determines rotation angle
- High accuracy of 3 to 5% per step
- Good starting, stopping, and reversing
- Cost-effective control

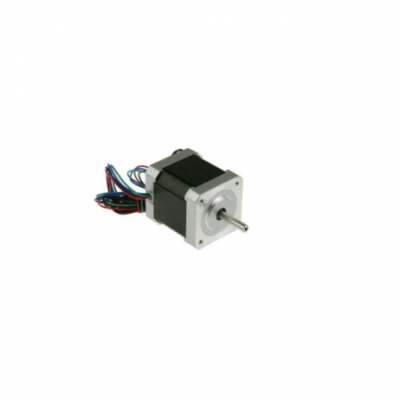

- Package Includes: 1 x Jk42HS60-1206F NEMA17 6.5 kg-cm Stepper Motor D-Type Shaft
The stepper motors move in precisely repeatable steps, making them ideal for machines requiring precise position control. The Nema17 0.65N-m Stepper motor can provide 0.65N-m of torque at 1.68A current per phase. The motor's position can be commanded to move or hold in one position with the help of Stepper Motor Drivers. It provides an excellent response to starting, stopping, and reversing pulses from the stepper motor driver. These motors are very useful in various applications, especially those demanding low speed with high precision, such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters, etc.
It is a brushless DC motor, so the life of this motor is dependent upon the life of the bearings. The position control is achieved by a simple Open Loop control mechanism, so it doesn't require complex electronic control circuitry. The motor's shaft has been machined for good grip with a pulley, drive gear, etc., especially avoiding stall or slip.
We are engaged in supplying and wholesaling a quality-approved collection of Stepper Motors, highly acknowledged and accepted for long service life and high reliability. To explore more of them, click below: Stepper Motors
*Images are for illustration only; actual product may vary.
