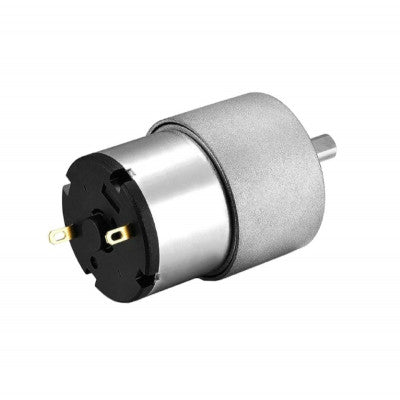

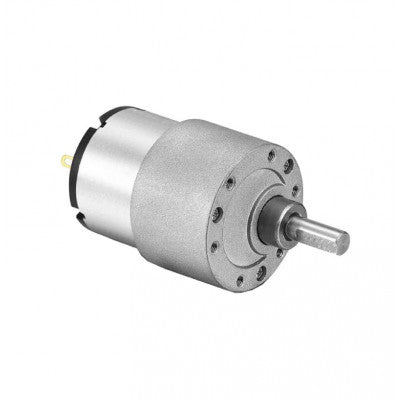

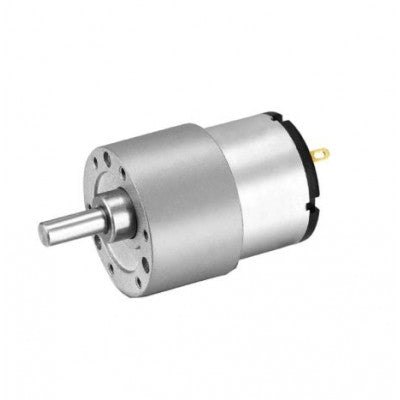

JGB37-520 DC 12V 12RPM Gear Motor
High-performance brushed motor for small smart devices
- Model: JGB37-520
- Rated Voltage: 12V
- Revolving Speed: 12 RPM
- Shaft type: D type
- Shaft length: 15mm
- Shaft Diameter: 6.2mm
- Rated Torque: 0.15 kg. cm
- Stall Torque: 0.6 kg. cm
- Rated Current: 100 mA
- Stall Current: 1.2A
- Total Length(LxWxH): 77x37x37mm
- Gear Material: Full Metal
- Shaft Size: 6 x 15mm(D*L)
- Gearbox length(L): 27mm
Top Features:
- Low speed, low noise, high torque
- Pure copper winding for low heat generation
- Metal gearbox for wear and rust resistance
- Thickened magnet for strong magnetic field
This large and powerful JGB37-520 DC gear motor is equipped with a brushed motor, ensuring stability and durability. It offers high performance and excellent electrical conductivity, enhancing the product's service life. Ideal for small smart device parts like vending machines, locks, and smart toys.
Applications include vending machines, panoramic cameras, slot machines, money detectors, coin refund devices, automatic doors, peritoneal machines, toys, and more.
Package Includes:
- 1pc x JGB37-520 DC12V 12RPM Miniature Brushed DC Speed Reducer Motor
* Images are for illustration only; actual product may vary.
