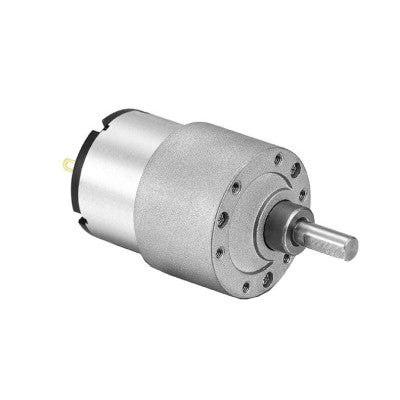

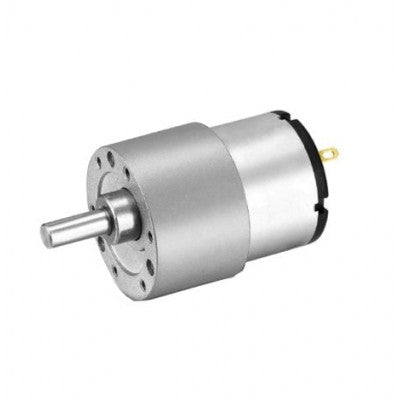

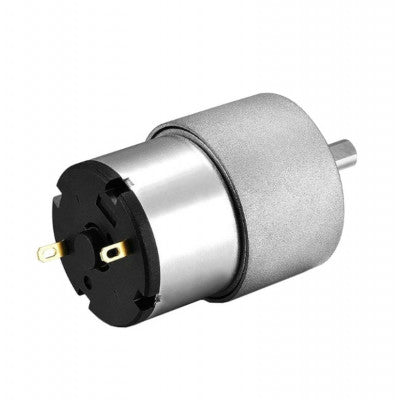

JGB37-520 DC Gear Motor
High-performance 12V reduction motor for small smart device parts
- Model: JGB37-520-107
- Rated Voltage: 12V
- Revolving Speed: 107 RPM
- Rated Torque: 0.15 kg. cm
- Stall Torque: 0.6 kg. cm
- Rated Current: 100 mA
- Stall Current: 1.2A
- Gear Material: Full Metal
- Shaft Size: 6 x 15mm(D*L)
- Gearbox Length: 27mm
- Shaft Type: D Type
- Total Body Length: 75mm
- Weight: 146g
Features:
- Low speed, low noise, high torque
- Pure copper winding for low heat generation and low loss
- Metal gearbox for wear resistance and rust resistance
- Thickened magnet for strong magnetic field and anti-interference
Equipped with a brushed motor, this DC motor offers stability and durability, enhancing the product's service life. The JGB37-520 DC gear motor is versatile, suitable for various projects such as vending machines, slot machines, automatic doors, toys, and more.
This miniature forward and reverse brushed DC speed reducer motor is ideal for applications in panoramic cameras, money detectors, coin refund devices, and peritoneal machines.
* Images are for illustration only; actual product may vary.
