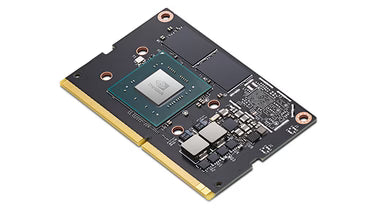

NVIDIA® Jetson Nano™ Module — Small. Powerful. Powered by AI.
The NVIDIA® Jetson Nano™ module brings high-performance edge AI to mass-market products. It delivers up to 472 GFLOPS of accelerated computing, runs multiple modern neural networks in parallel, and can process data from several high-resolution sensors — ideal for AIoT gateways, smart cameras and NVRs, consumer robots, and optical inspection systems. Production-ready and compatible with popular AI frameworks, Jetson Nano speeds your product from development to production.
Why choose Jetson Nano?
- Real-time processing of high-resolution inputs using a 128-core NVIDIA Maxwell™ GPU.
- Supports a wide range of sensors (CSI, I²C, GPIO, SPI, UART) and interfaces (PCIe, USB, Ethernet, HDMI).
- Excellent power efficiency — operates from ~5 W up to 10 W.
- Supported by NVIDIA JetPack™ (BSP, Linux OS, CUDA®, cuDNN, TensorRT) for fast AI deployment.
- Same JetPack SDK across the NVIDIA Jetson family — simplifies scaling and integration.
Key Specifications
| GPU | 128-core NVIDIA Maxwell™ |
| CPU | Quad-core ARM® A57 @ 1.43 GHz |
| Memory | 4 GB 64-bit LPDDR4 (25.6 GB/s) |
| Storage | 16 GB eMMC 5.1 |
| Performance | Up to 472 GFLOPS |
| Video Encode | 4K @ 30 | 4×1080p @ 30 | 9×720p @ 30 (H.264/H.265) |
| Video Decode | 4K @ 60 | 2×4K @ 30 | 8×1080p @ 30 | 18×720p @ 30 (H.264/H.265) |
| CSI | 12 lanes MIPI CSI-2 (configurable: 3×4 or 4×2) |
| Connectivity | Gigabit Ethernet, PCIe Gen2 (1x1/2/4), USB 3.0 (1x), USB 2.0 (3x) |
| Display | HDMI 2.0, eDP 1.4, DisplayPort 1.2 (two displays simultaneously) |
| Other I/O | I²C, I²S, SPI, UART, SD/SDIO, GPIO |
| Mechanical | 69.6 mm × 45 mm — 260-pin SODIMM connector |
Power
- Voltage input: 5 V
- Module power: ~5 W to 10 W
Environmental & Reliability
- Operating temperature: −25 °C to 80 °C (see thermal design guide for details)
- Storage temperature: −25 °C to 80 °C
- Humidity (non-operational): 85% RH @ 85 °C
- Vibration (non-operational): sinusoidal 5 G RMS (10–500 Hz); random 2.88 G RMS (5–500 Hz)
- Shock (non-operational): 140 G, half-sine, 2 ms
Software Support
Jetson Nano is supported by NVIDIA JetPack™, which includes the Board Support Package, Linux OS, CUDA, cuDNN, and TensorRT libraries for deep learning, computer vision, GPU computing and multimedia processing. This comprehensive stack reduces complexity and accelerates time-to-market for autonomous and edge AI systems.
Ideal for: AIoT gateways, smart NVRs & cameras, consumer robots, optical inspection systems, and other embedded AI products.
