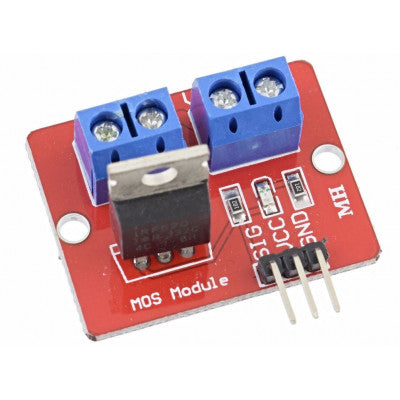

IRF520 MOSFET Driver Module for Arduino Raspberry Pi
A breakout board for the IRF520 MOSFET transistor to switch heavy DC loads
- Voltage: 3.3V and 5V
- Port: Digital level
- Output load voltage: 0-24V
- Output load current: <5A (1A or more need to add heat sink)
- Platform: Arduino, MCU, ARM, Raspberry Pi
- Size: 33*24mm
- Weight: 10g
Top Features:
- Original IRF520 Power MOS
- Adjustable output PWM
- Can drive up to 24V loads
- PWM dimming for LED lights and variable speed motor control
The IRF520 MOSFET Driver Module is a simple breakout board designed to switch heavy DC loads from a single digital pin of your microcontroller. It can drive loads such as LED lights, DC motors, miniature pumps, and solenoid valves up to 24V and ~5A. The module is ideal for robotics applications and controlling high current DC loads.
Connect your device to the V+ and V- screw terminals, power the device from your Arduino by connecting VCC to the 5V pin and GND to the GND pin. An LED indicator provides a visual cue when the load is being switched. Note that heat sinks are required for loads above 1A.
The IRF520 MOSFET Driver Module allows for stepless dimming of LEDs and variable speed control of motors through PWM. It is compatible with Arduino, MCU, ARM, and Raspberry Pi platforms.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
