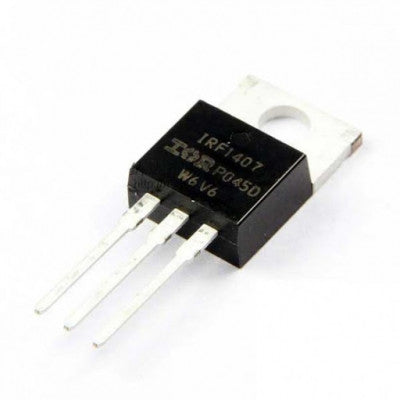

IRF1407
Specifically designed for automotive applications, the IRF1407 HEXFET Power MOSFET offers low on-resistance and high efficiency.
- Number of Channels: 1 Channel
- Transistor Polarity: N-Channel
- Drain-Source Breakdown Voltage (Vds): 75V
- Continuous Drain Current (Id): 130A
- Drain-Source Resistance (Rds On): 7.8mOhms
- Gate-Source Voltage (Vgs): 20V
- Gate Charge (Qg): 250 nC
- Operating Temperature Range: -55 - 175°C
- Power Dissipation (Pd): 330W
Features:
- Advanced process technology
- Ultra low on-resistance
- Dynamic dv/dt rating
- Fast switching
Specifically designed for Automotive applications, this Stripe Planar design of HEXFET® Power MOSFETs utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this HEXFET power MOSFET are a 175°C junction operating temperature, fast switching speed, and improved repetitive avalanche rating. These benefits combine to make this design an extremely efficient and reliable device for use in Automotive applications and a wide variety of other applications.
Related Documents: IRF1407 MOSFET Datasheet
*Images are for illustration only; actual product may vary.
