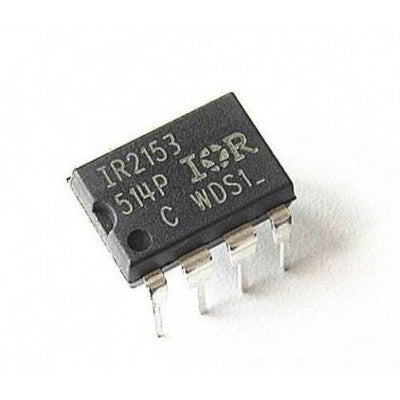

IR2153 Gate Driver IC
An improved version of popular gate driver ICs with enhanced functionality and ease of use.
- Integrated 600V half-bridge gate driver: Yes
- Shutdown feature on CT pin: Yes, enables disablement of both gate driver outputs with low voltage control signal
- Undervoltage lockout Hysteresis: 1V
- Di/dt gate driver: Lowered for improved noise immunity
Specifications:
- VB-High side floating supply voltage: -0.3 - 625 V
- VS-High side floating supply offset voltage: VB -25 to VB +0.3 V
- VHO-High side floating output voltage: VS -0.3 to VB +0.3 V
- VLO-Low side output voltage: -0.3 to VCC+0.3 V
- VRT-RT pin voltage: -0.3 to VCC+0.3 V
- ICC-Supply current: 0 - 25 mA
The IR2153 is a significant advancement in gate driver technology, offering increased functionality and ease of use compared to its predecessors. The inclusion of a shutdown feature on the CT pin enhances control flexibility, while the improved noise immunity and latch immunity make it a reliable choice for various applications. Added ESD protection on all pins further ensures the durability of the device.
For more details or bulk pricing inquiries, please contact our sales team at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
