IR1150 Power Factor Correction Control IC
A cost-effective solution for power factor correction with high system performance
- Type: Power Factor Correction Control IC
- Operating Mode: Continuous Conduction Mode (CCM)
- Control Technique: One Cycle Control (OCC)
- Input Voltage Range: Wide Range
- Switching Frequency: Programmable (50kHz-200kHz)
- Over Voltage Protection: Programmable
-
Features:
- Cost-effective OCC technique
- No line voltage sensing required
- Reduced component count and design time
- Protected against noise
The IR1150 is a power factor correction (PFC) control IC designed for continuous conduction mode operation over a wide range of input line voltages. It utilizes IR's proprietary "One Cycle Control" technique, offering a cost-effective solution for PFC while maintaining high system performance compared to traditional methods.
The IC features programmable switching frequency, dedicated overvoltage protection, soft start, cycle-by-cycle peak current limit, brownout and undervoltage protection, and more. It eliminates the need for noise-sensitive line voltage sensing and can be driven into a micropower "Sleep Mode" for low standby power requirements.
Additional features include latch immunity, ESD protection, and lead-free options. The IR1150 is a versatile solution for power factor correction applications, providing efficient performance and protection in a compact design.

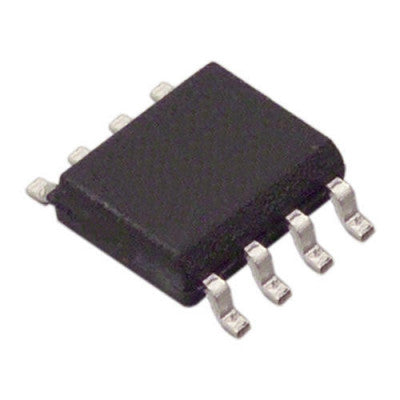

*Images are for illustration only; actual product may vary.*
