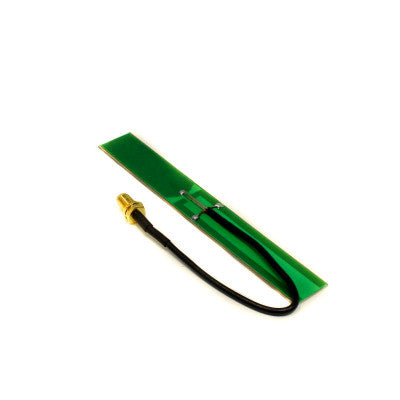

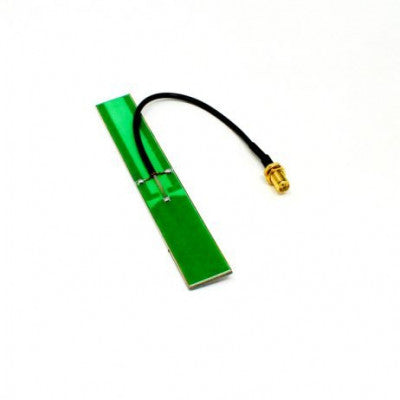

PCB Antenna
A wireless device for 2G, 3G, 4G LTE, ISM applications with 1.5dBi gain
- Model: LWC-4G-PCB-03
- Frequency Range: 698 ~ 960MHz & 1710 ~ 2690MHz
- Gain: 1.5dBi
- Impedance: 50
- VSWR: < 2.5
- Polarization: Linear
- Power Handling (W): 5
- HPBW: 3600 V: 300 / 400
- Cable: Mini Coax 1.13mm/0.81mm/ RG178/ RG316
- Cable Length: As required (suggested up to 20cm)
- Connector: SMA Female
- Operating Temperature (C): -30 to 60
- Humidity: 5 75%
- Length (mm): 54
- Width (mm): 34
- Height (mm): 5
- Weight (gm): 5
Features:
- Compact Size
- High quality
- Low cost

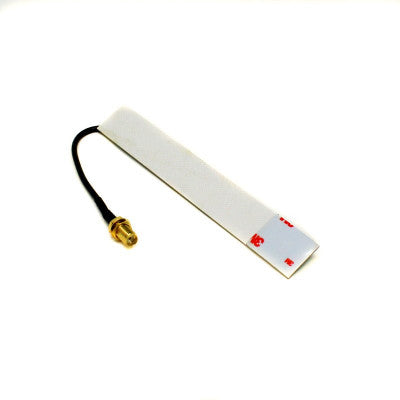

- 3M high-quality adhesive
PCB Antenna is a wireless device designed to receive and transmit signals, commonly used in telecommunication for communication purposes. The main advantage of using a PCB (printed circuit board) antenna is the reduced overall cost of the radio module.
Package Includes: 1 x Internal PCB Antenna for 2G / 3G / 4G Applications
* Images are for illustration only; actual product may vary.
