INA128 SMD
Low-power, general-purpose instrumentation amplifiers with excellent accuracy
- Number of channels (#): 1
- Vs (Max) (V): 36
- Vs (Min) (V): 4.5
- Input offset (+/-) (Max) (uV): 250
- Gain (Min) (V/V): 1
- Gain (Max) (V/V): 10000
- Noise at 1 kHz (Typ) (nV/rt (Hz)): 8
- CMRR (Min) (dB): 120
- Input offset drift (+/-) (Max) (uV/C): 0.5
Top Features:
- Low Offset Voltage: 25 uv Typical
- Low Input Bias Current: 50 nA Typical (t)
- High CMR: 95 dB Typical"
- Inputs Protected to ± 40V
The INA128 SMD are low-power, general-purpose instrumentation amplifiers offering excellent accuracy. The versatile three-operational-amplifier design and small size make them ideal for a wide range of applications. Current-feedback input circuitry provides wide bandwidth even at high gain. A single external resistor sets any gain from 1 to 10000. The INA128 SMD provides an industry-standard gain equation. The INA128 SMD are laser trimmed for very low offset voltage (25 PV Typ) and high common-mode rejection (93 dB at G 2 100). These devices operate with power supplies as low as ±2.25 V, and quiescent current of 2 mA, typically. Internal input protection can withstand up to V without damage. The high-temperature products use highly optimized silicon (die) solutions with design and process enhancements to maximize performance over extended temperatures. The INA128 SMD is available in an 8-pin SOIC-8 surface-mount package, specified for the —550C to 1750C temperature range.
Application:
- Bridge Amplifiers
- Thermo couple Amplifiers
- RTD Sensor Amplifiers
- Medical Instrumentation
- Data Acquisition
- Supports Extreme Temperature Applications
Related Document: INA128 SMD Data Sheet

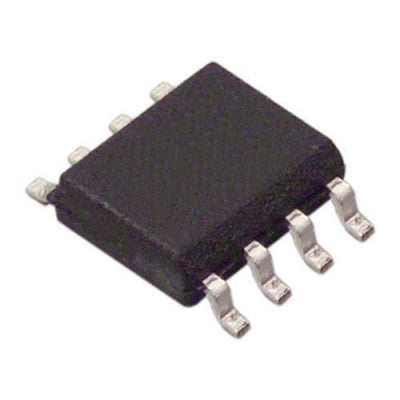

*Images are for illustration only; actual product may vary.
