INA122 Precision Instrumentation Amplifier
A precision amplifier for accurate, low noise signal acquisition
- Number of channels: 1
- Vs (Max) (V): 36
- Vs (Min) (V): 2.2
- Input offset (+/-) (Max) (uV): 250
- Gain (Min) (V/V): 5
- Gain (Max) (V/V): 10000
- Noise at 1 kHz (Typ) (nV/rt (Hz)): 60
- CMRR (Min) (dB): 83
Top Features:
- Low quiescent current: 60µA
- Wide power supply range
- Rail-to-rail output swing
- Low noise: 60nV/?Hz
The INA122 is ideal for portable instrumentation and data acquisition systems. It can be operated with single power supplies from 2.2V to 36V, or from dual supplies. The input common mode range extends to 0.1V below the negative rail. Gain can be set from 5V/V to 10000V/V with a single external resistor. The amplifier offers laser trimming for very low offset voltage and drift, along with excellent common-mode rejection.

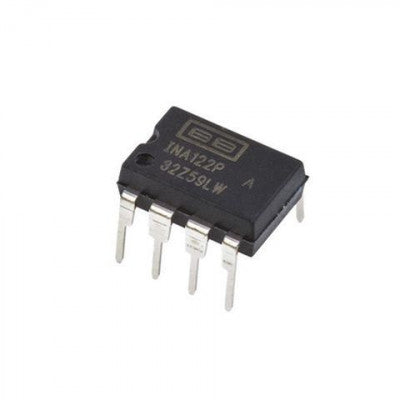

Package options include 8-pin plastic DIP and SO-8 surface-mount packages, both specified for the -40°C to +85°C extended industrial temperature range.
