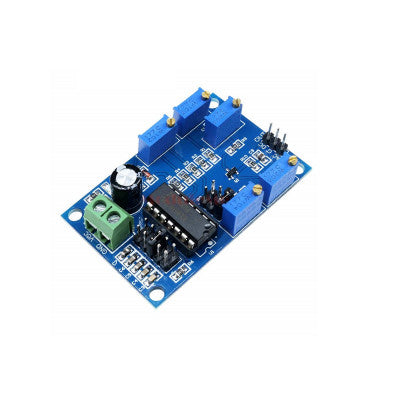

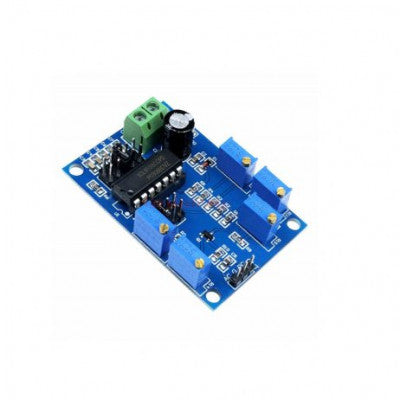

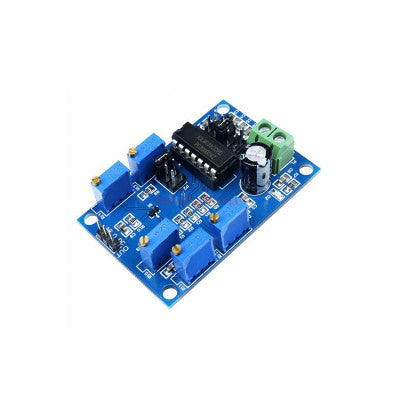

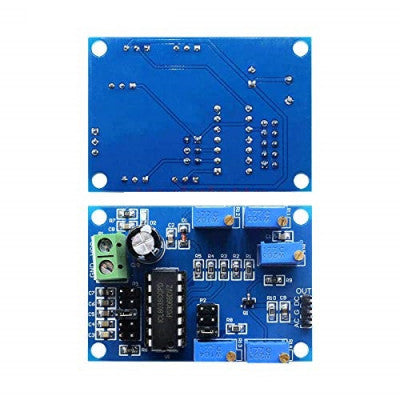

ICL8038 12V to 15V Signal Generator Module
Adjustable signal generator for common frequency ranges
- Function: VCC, GND, AC, G, DC, R11, R12, R13, R14, R15, Jumper P2, Jumper P3
- Frequency Range: 10Hz-450Hz, 90Hz-1.5KHz, 940Hz-15KHz, 6KHz-120KHz, 20KHz-450KHz
Features:
- Adjustable from 5 gears
- Generates low-distortion triangular, square, and sine waves
- Portable design for easy operation
The LC ICL8038 module is designed for common frequency ranges. It is adjustable from 5 gears and generates low-distortion triangular waves, square, and sine waves from 0Hz to 450KHz. A sine wave can be used for test signals, drive signals, carrier frequency signals, etc. A square wave can be used for switching signals, trigger signals, etc; the triangular wave is mainly used for scanning signals.
Package Includes: 1 x ICL8038 12V to 15V Signal Generator 10Hz-450KHz Module
Images are for illustration only; actual product may vary.
