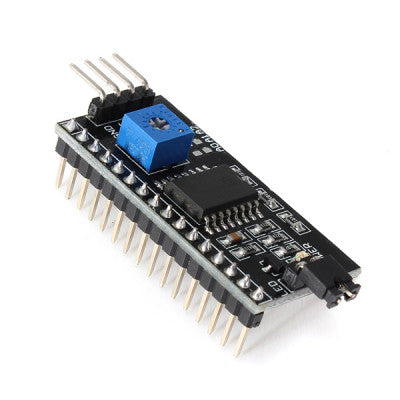

I2C Module with PCF8574 Chip
A versatile module for converting I2C serial data to parallel data for LCD display.
- Operating Voltage: 5V
- Backlight and Contrast: Adjusted by potentiometer
- Serial Control: I2C using PCF8574
- Connections: 2 IIC interfaces via Dupont Line or IIC cable
Top Features:
- 5V Operating Voltage
- Adjustable Backlight and Contrast
- Simple I2C Control
- Compatible with 16x2 LCD
The I2C Module features an inbuilt PCF8574 I2C chip that efficiently converts I2C serial data to parallel data for LCD displays. The default I2C address is either 0x27 or 0x3F, which can be determined by checking the black I2C adaptor board.
If the module has 3 sets of pads labelled A0, A1, & A2, the default address is 0x3F. If there are no pads, the default address is 0x27. Additionally, the module includes a contrast adjustment potentiometer on the underside of the display for fine-tuning the text display.
With its 2 IIC interfaces, this module offers flexibility in connection methods, allowing for easy integration with Dupont Line or IIC dedicated cables. It is fully compatible with 16x2 LCD displays, making it a versatile choice for various projects.
*Images are for illustration only; actual product may vary.*
