RS232 to RS485 Serial Port Data Interface Adapter Converter
Efficiently convert between RS232 and RS485 with this versatile adapter
- Data Transfer Rate: 300-115200bps
- Operating Distance: 1200m for RS485, 5m for RS232
- Transmission Media: Twisted-pair or shielded twisted pair (STP)
- Power: None required, uses TD as power source
- Environment: -10°C to 85°C, 5% to 95% RH
- Interface: Compatible with EIA/TIA RS-232C standard and RS-485 standard
- Working Mode: Asynchronous, half-duplex, differential transmission
- Weight: 70gm
Top Features:
- Compatible with RS-232C and RS-485 standards
- Asynchronous, half-duplex, differential transmission
- Wide operating temperature range: -10°C to 85°C
- Transmission Distance: 1.2 mile (RS-485), 5 meters (RS-232)

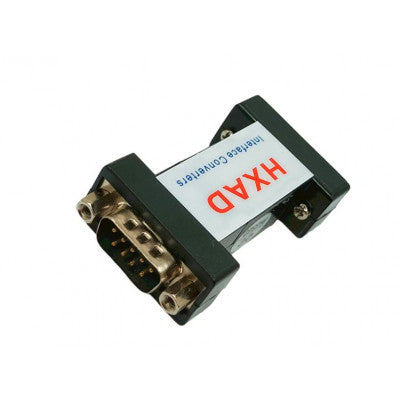

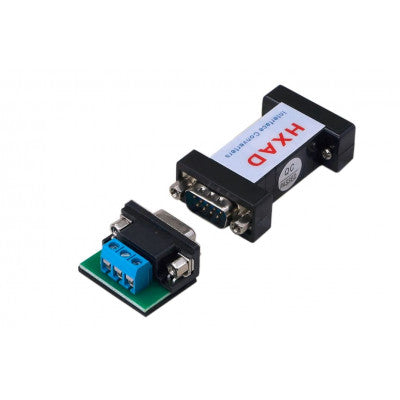

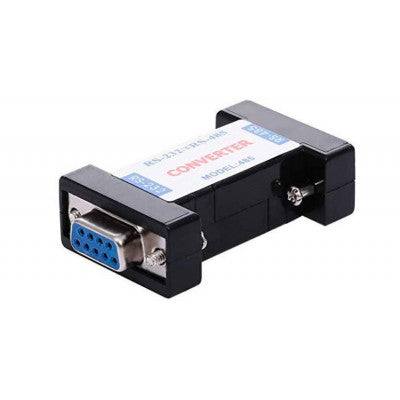

At the side of RS-232 is a DB9 female (hole-type) connector, and at the side of RS-485 is a DB9 male (needle-type) connector with a connection board. It has a transmission speed of 300-115200 bps. Common wire, double wire, UTP, or Shielding Line are used as transmission media.
Package Includes:
- 1 x RS-232 to RS-485 adapter
- 1 x 3 poles connection board
- 1 x User's Guide in English
Images are for illustration only; actual product may vary.
