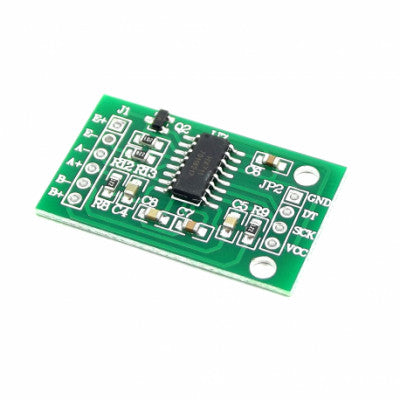

HX711 Load Cell Amplifier Module
A high-precision breakout board for HX711 IC
- Differential input voltage: ±40mV (Full-scale differential input voltage is ± 40mV)
- Data accuracy: 24 bit (24 bit A/D converter chip)
- Refresh frequency: 10/80 Hz
- Operating Voltage: 2.7V to 5VDC
- Operating current: <10 mA
- Size: 24x16mm
Key Features:
- 24-bit high precision A/D converter chip
- Programmable gain amplifier with 128x integration
- Two analog input channels
- Easy interface with any micro-controller
The HX711 module is a Load Cell Amplifier breakout board for the HX711 IC, specially designed for high-precision electronic scale applications. It offers two analog input channels and integrates a 128x programmable gain amplifier. This module ensures high precision at a low cost, making it an ideal choice for sampling front-end applications.
With the HX711, you can easily integrate load cells into your project without the need for additional amplifiers or dual power supply. The chip features a two-wire interface (Clock and Data) for seamless communication with any micro-controller. Its high integration, fast response, and immunity make it a reliable choice for electronic enthusiasts looking for performance and cost-effectiveness.
The HX711 IC not only reduces the cost of electronic scales but also enhances overall performance and reliability, making it one of the best options in the market.
Images are for illustration only; actual product may vary.
