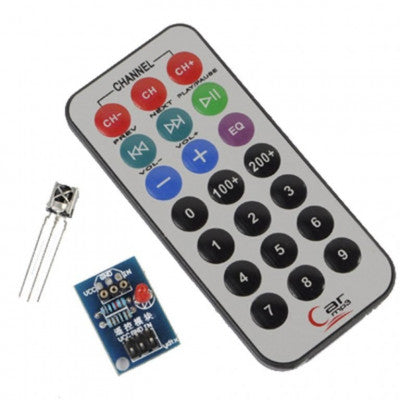

HX1838 VS1838 NEC Infrared IR Wireless Remote Control Sensor Module For Arduino
High sensitivity sensor with 5V operating voltage and digital output
- VCC: 3.3V-5V external voltage
- Kit Theory Test Distance: 5-8 meters
- Output Form: Digital output
- Compatibility: 5v and 3.3v microcontrollers
Features:
- Crystal: 455 oscillation frequency
- NEC encoding format with upd6122 encoding scheme
- Internal filter for PCM frequency
- Improved shielding against EMI

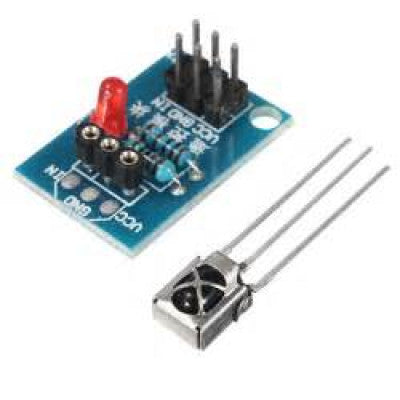

The receiving head with HX1838 has power work instructions lights and can receive 38K frequency remote coding data. This ultra-thin 38K universal infrared IR Remote Control is suitable for various applications like USB port stereo, car MP3, foot bath, lighting, digital photo frame, microcontroller development board, and learning board.
Note: IR Remote does not come with a CR2025 battery; it must be purchased separately.
Package Includes:
- 1 x IR Remote Control Module
- 1 x IR Telecontrol
- 1 x Receiver
Specifications:
- Transmission Distance: up to 8m
- Effective Angle: 60 degrees
- Static Current: 3-5 A
- Dynamic Current: 3-5 mA
- Supply Voltage: 2.7-5.5 V
- Remote Battery: 1 x CR2025 Button battery (not included)

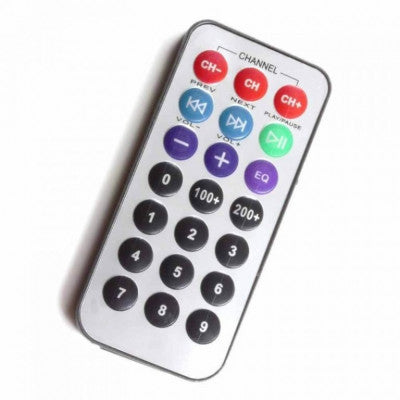

- Remote Dimensions: Length: 85.7mm, Width: 40mm, Height: 6.5mm, Weight: 10g
Images are for illustration only; actual product may vary.
