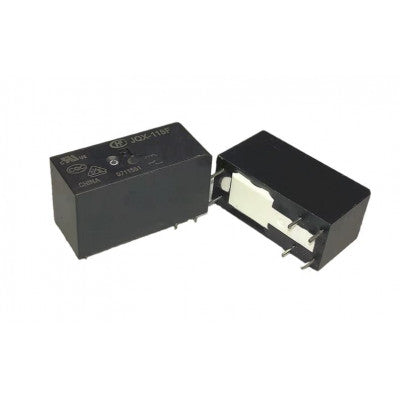

Hongfa 5V 16A DC JQX115F/005-1H3B 6-Pin SPST PCB Mount Power Relay
Reliable 5V power relay with high inrush TV-5 and low height design.
- Type: JQX115F/005-1H3B
- Switching Current (A, Res. load): 16A
- Contact arrangement: 1 Form A
- Contact material: Silver Alloy
- Coil voltage: 5
- Creepage Distance: 10mm
- Coil Power: 0.4W
- Unit Weight: 13.5gm
Top Features:
- High Inrush TV-5 80A
- Low height 15.7 mm
- 5KV dielectric coil to contacts
- Creepage distance 10mm
Package Includes: 1 x Hongfa 5V 16A DC JQX115F/005-1H3B 6-Pin SPST PCB Mount Power Relay
* Images are for illustration only; actual product may vary.
