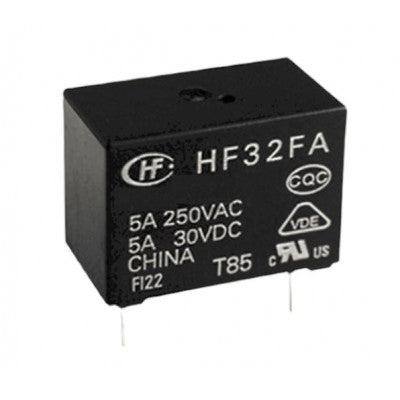

Hongfa 18V 5A DC HF32FA/018-HSL 4 Pin SPST Miniature Power Relay
Low height relay with 5A switching capability and 5kV dielectric strength.
- Manufacturer: HONGFA RELAY
- Type of relay: Electromagnetic
- Contacts configuration: SPST-NO
- Rated coil voltage: 18V DC
- AC contacts rating @R: 5A / 250V AC (at resistive load)
- Contact current max: 5A
- Switched voltage: max. 250V AC
- Relay variant: Subminiature
- Mounting: PCB
- Coil resistance: 620?
- Coil voltage min: 9V DC
- Coil voltage max: 18V DC
- Operate time: 8 ms
- Body dimensions: 17.6x10.1x12.3mm
- Release time: 4ms
- Coil power consumption: 230mW
- Operating temperature: -40 to +85°C
- Contact resistance: 70m?
- Contact material: AgSnO2
- Weight: 4.5 gm
Features:
- 5A switching capability
- Creepage/clearance distance >8mm
- 5kV dielectric strength (between coil and contacts)
- 1 Form A meets VDE 0700, 0631 reinforce insulation
Hongfa 18V 5A DC HF32FA/018-HSL 4 Pin SPST Miniature Power Relay offers low height, 5A switching capability, 5kV dielectric strength (between coil and contacts), and environmentally friendly product (RoHS compliant) and meets VDE 0700, 0631 reinforce insulation.
Package Includes: 1 x Hongfa 18V 5A DC HF32FA/018-HSL 4 Pin SPST Miniature Power Relay
*Images are for illustration only; actual product may vary.
