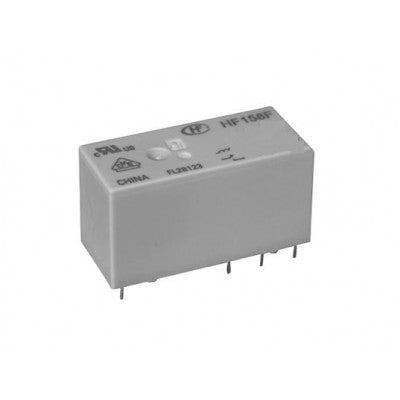

Hongfa 12V 16A DC HF158F/12-H3T 6-Pin SPST Power Relay
Compact 12V power relay with 16A switching capability and low height design.
- Type: HF158F/12-H3T
- Switching Current (A,Res.load): 16A
- Contact arrangement: 1 Form A
- Coil version: single contact
- Terminal Type: PCB
- Mounting: PCB-THT
- Construction: Flux proofed
- Terminals: 3
- Contact material: AgSnO2
- Coil voltage: 12
- Coil power: Approx 0.4W
- Insulation standard: Class F
- Coil voltage form: DC
- Rated voltage(V): 250VAC
- Volume(mm³): 29.0×12.7×15.7 (mm)
Top Features:
- 16A switching capability
- Low height design: 15.7 mm
- 5kV dielectric strength
- Creepage distance: 10mm
The Hongfa 12V 16A DC HF158F/12-H3T 6-Pin SPST Power Relay is a reliable solution for various electronic applications. It offers a compact design with a 16A switching capability and low height of 15.7 mm. The relay meets reinforce insulation standards with a 5kV dielectric strength and a creepage distance of 10mm. It is constructed with Class F insulation and is in accordance with IEC 60335-1 standards. Sockets and plastic sealed types are available for added versatility.
Package Includes: 1 x Hongfa 12V 16A DC HF158F/12-H3T 6-Pin SPST Power Relay
