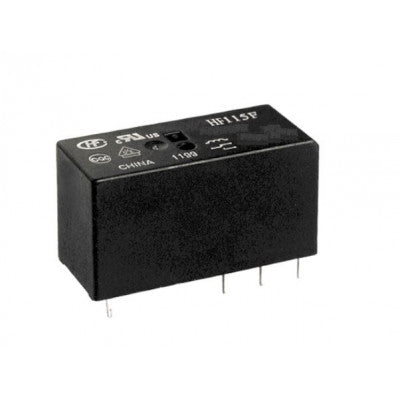

Hongfa 12V 12A DC HF115F/012-1Z2BF 5-Pin SPDT Power Relay
Compact power relay with 16A switching capability and 5kV dielectric strength.
- Type: HF115F/012-1Z2BF
- Switching Current (A,Res.load): 12A
- Contact arrangement: 1 Form C
- Coil version: single contact
- Terminal Type: PCB
- Mounting: PCB-THT
- Construction: Flux proofed
- Terminals: 5.0mm 1 pole 12A
- Contact material: AgSnO2
- Sort: Standard
- Coil voltage: 24
- Coil power: Approx 0.4
- Insulation standard: Class F
- Coil voltage form: DC
- Rated voltage(V): 250VAC
- Volume(mm³): 29.0×12.7×15.7 (mm)
Top Features:
- Low height: 15.7 mm
- 16A switching capability
- 5kV dielectric strength
- Creepage distance: 10mm
The Hongfa 12V 12A DC HF115F/012-1Z2BF 5-Pin SPDT Power Relay is a compact relay with a 16A switching capability and 5kV dielectric strength. It features a contact arrangement of 1 Form C and a single contact coil version. The relay is mounted on PCB-THT and is constructed to be flux proofed. With terminals of 5.0mm 1 pole 12A and contact material of AgSnO2, this relay meets standard insulation requirements. The coil voltage is 24 with a coil power of approximately 0.4. It has a rated voltage of 250VAC and a compact volume of 29.0×12.7×15.7 (mm).
Package Includes: 1 x Hongfa 12V 12A DC HF115F/012-1Z2BF 5-Pin SPDT Power Relay
