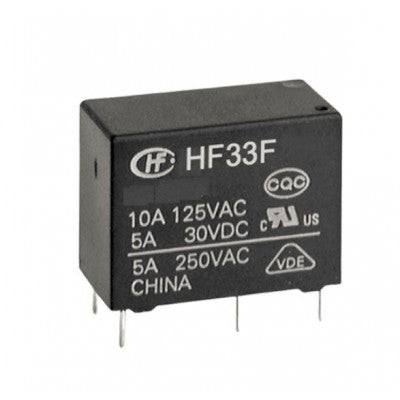

Hongfa 12V 10A DC HF33F/012-HL3 5-Pin SPDT Miniature Power Relay
Compact and reliable 12V power relay with 10A switching capability.
- Type: HF33F/012-HL3
- Switching Current (A,Res.load): 10A
- Contact arrangement: 1 Form A
- Coil version: single contact
- Terminal Type: Quick connect terminals
- Mounting: PCB-THT
- Construction: Flux proofed
- Contact material: AgNi
- Coil voltage: 12V
- Coil power: Approx 0.2W
- Insulation standard: Class F
- Rated voltage(V): 250VAC
- Volume(mm³): 20.5×10.2×15.7 (mm)
Top Features:
- 5A 250VAC switching capability
- Creepage distance: 8mm
- Subminiature size
- UL insulation system: Class F
The Hongfa 12V 10A DC HF33F/012-HL3 5-Pin SPDT Miniature Power Relay is designed to provide reliable power switching in a compact form factor. With a switching current of 10A and a coil voltage of 12V, this relay is suitable for various electronic applications. It features quick connect terminals for easy installation on PCBs and is constructed to be flux proofed for enhanced durability.
Additionally, this power relay meets UL insulation system Class F standards and is compliant with IEC 60335-1 regulations, ensuring safe and efficient operation. Whether you need to control high-power devices or automate processes, the Hongfa power relay is a dependable choice.
Package Includes:
- 1 x Hongfa 12V 10A DC HF33F/012-HL3 5-Pin SPDT Miniature Power Relay
Images are for illustration only; actual product may vary.
