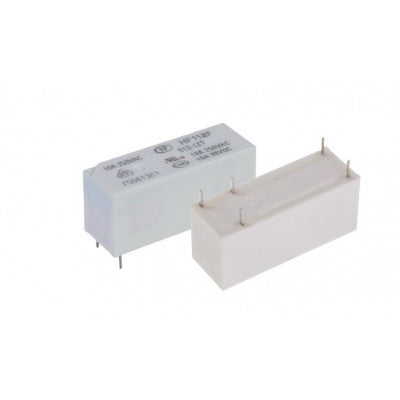

Hongfa 12V 10A DC HF118F/012-1Z1 Series 5 Pins SPDT High Power Relay
Low height, 8A switching capability, 5kV dielectric strength, RoHS compliant
- Manufacturer: HONGFA RELAY
- Type of relay: electromagnetic
- Contact Arrangement: 1 Form C
- Contacts configuration: SPDT
- Rated coil voltage: 12V DC
- AC contacts rating @R: 10A / 250V AC (at resistive load)
- DC contacts rating @R: 10A / 30V DC (at resistive load)
- Contact current max: 10A
- Switched voltage: max. 125V DC, max. 440V AC
- Relay variant: miniature
- Mounting: PCB
- Coil resistance: 620?
- Coil voltage min: 8.4V DC
- Coil voltage max: 18V DC
- Operate time: 10ms
- Body dimensions: 28.5x12.5x10.1mm
- Release time: 5ms
- Coil power consumption: 220mW
- Operating temperature: -40...85°C
- Contact resistance: 100m?
- Contact material: AgNi+Au Plated
- Terminal pitch: 3.2mm
- Size: 28.5x10.1x12.5mm
- Weight: 8gm
Features:
- 8A switching capability
- 5kV dielectric strength
- Low height: 12.5 mm
- Creepage distance >8mm
Package Includes:
- 1 x Hongfa 12V 10A DC HF118F/012-1Z1 Series 5 Pins SPDT High Power Relay
* Images are for illustration only; actual product may vary.
