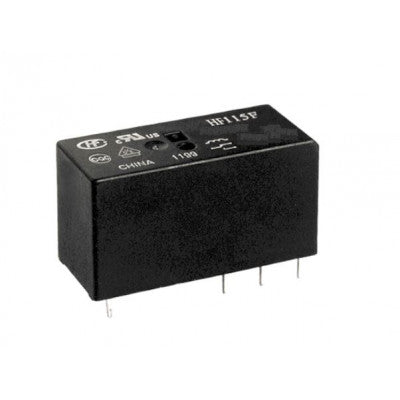

Hongfa 12V 10A DC HF115F-H/012-1ZS3B 8-Pin SPDT Power Relay
High sensitive power relay with low height and 5kV dielectric strength.
- Type: HF115F-H/012-1ZS3B
- Switching Current (A,Res.load): 10A
- Contact arrangement: 1 Form C
- Coil version: single contact
- Terminal Type: PCB
- Mounting: PCB-THT
- Construction: Plastic sealed
- Terminals: 5.0mm 1 pole
- Contact material: AgNi
- Coil voltage: 12
- Coil power: Approx 0.25W
- Insulation standard: Class F
- Coil voltage form: DC
- Rated voltage(V): 250VAC
- Volume(mm³): 29.0×12.7×15.7 (mm)
Features:
- High sensitive: 0.25W
- Low height: 15.7 mm
- 5kV dielectric strength (between coil and contacts)
- Creepage distance: 10mm
Package Includes:
- 1 x Hongfa 12V 10A DC HF115F-H/012-1ZS3B 8-Pin SPDT Power Relay
* Images are for illustration only; actual product may vary.
