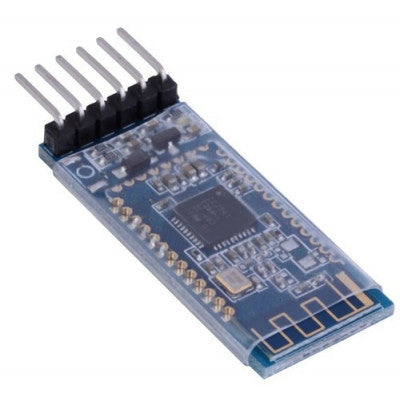

HM-10 Bluetooth Module
A powerful Bluetooth module for BLE development
- BT Version: Bluetooth Specification V4.0 BLE
- Working frequency: 2.4GHz ISM band
- Modulation method: GFSK (Gaussian Frequency Shift Keying)
- RF Power: -23dbm, -6dbm, 0dbm, 6dbm
- Speed: Asynchronous: 6K Bytes, Synchronous: 6K Bytes
- Security: Authentication and encryption
Top Features:
- Bluetooth V4.0 BLE
- Long Range up to 100 Meters
- Low Power Consumption
- Compact Size: 26.9mm x 13mm x 2.2mm
The HM-10 Bluetooth module combines the powerful Texas Instruments CC2541 Chipset with the necessary components for immediate BLE development. With an on-board voltage regulator, TTL-level, and 5 V tolerance, it offers an accessible UART interface to the Bluetooth-SoC supporting AT-Commands for setup. The module, fully Bluetooth 4.0 standard compliant, is ideal for Arduino or microcontroller compatible with Android or iOS communication projects. Additionally, it can replace HC-05, HC-06, and HC-07 devices and be configured as an iBeacon for Apple devices.
Specifications:
- Power: +3.3VDC 50mA
- Power Consumption: In sleep mode 400uA~1 .5mA, Active mode 8.5mA
- Working temperature: –5 ~ +65 Centigrade
- Size: HM-10 26.9mm x 13mm x 2.2mm
- Pack/Unit: 1 Bluetooth Module
Images are for illustration only; actual product may vary.
