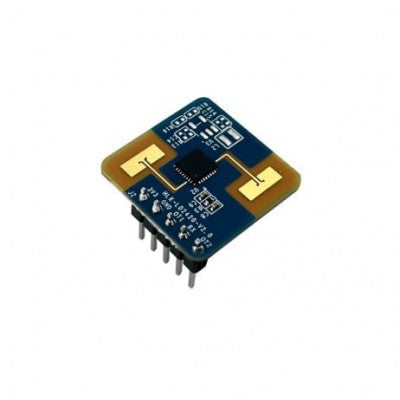

HLK-LD2420 24GHz Radar Module
High-performance radar module for human sensing in indoor environments.
- Power supply: 3.3 V (3.0 V ~ 3.6)
- Operating Current: 50 mA
- Band: 24 GHz
- Size: 20 mm x 20 mm
Features:
- Ultra-small module size: 20 mm x 20 mm
- Plug and play with default body sensor configuration
- 24 GHz ISM band with FCC, CE, and Commission-free spectrum approvals
- 3.3 V power supply, supports 3.0 V ~ 3.6 wide voltage range
HLK-LD2420 is a high-performance 24 GHz radar module with one transmitter and one receiver antenna. It utilizes millimeter-wave radar distance measurement technology and advanced proprietary signal processing technology for accurate human body sensing. Ideal for indoor scenarios to detect moving or slightly moving human bodies in real-time. The module has a maximum sensing distance of 8 m and can be easily configured for different zones.
It supports GPIO and UART interface, making it plug-and-play for various smart scenarios and end products.
Package Includes: 1 x HLK-LD2420 24GHz human body micromotion sensing detection radar sensor module. HLK-LD2410 low-cost solution.
* Images are for illustration only; actual product may vary.
