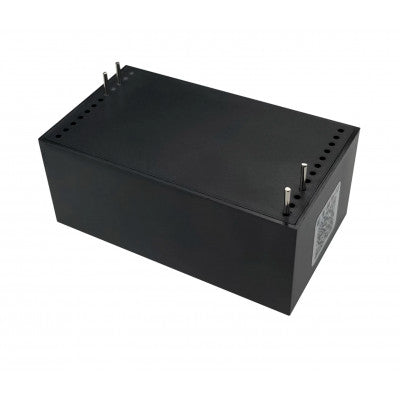

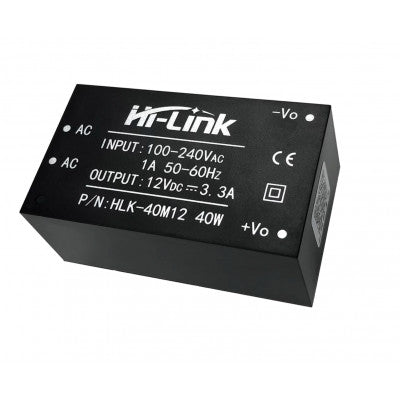

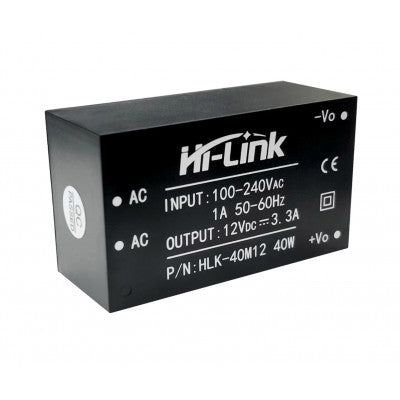

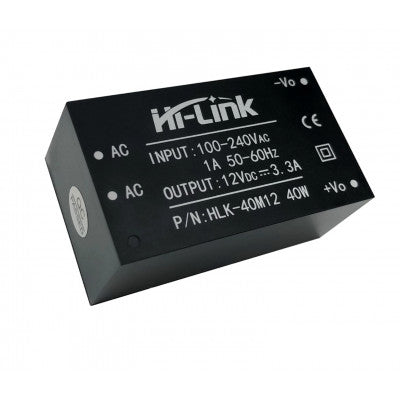

HLK-40M12 Hi-Link 12V 40W AC to DC Power Supply Module
A plastic enclosed PCB mounted isolated switching step-down power supply module.
- Model Number: HLK-40M12
- Output Power(W): 40
- Output Type: Single
- Input Voltage(V): 90-265
- Output Voltage(V): 12
- Output Current(mA): 3300
- Working Temp(C): -25 to +60
- Working Humidity: 5-95%
- Length(mm): 56
- Width(mm): 32
- Height(mm): 22.5
- Weight(gm): 80
Features:
- Ultra-thin, ultra-small, smallest volume
- Global universal input voltage (90~265Vac)
- Low power consumption, green environmental protection, no-load loss <0.1W
- Low ripple, low noise
This 40W ultra-small series module power supply is a small-size, high-efficiency, power module designed by Hi-link Electronics for customers with advanced Gallium Nitride chipset. It has the advantages of global input voltage range, low temperature rise, low power consumption, high efficiency, high reliability, and high safety isolation. It has been widely used in smart home, automation control, communication equipment, instrumentation, and other industries.
The Power Supply Module voltage source is a switching source, so you do not have to worry about fluctuations in the voltage grid. It is designed to be mounted on the PCB and is the ideal solution to power pads that you take.
Environmental conditions:
- Working temperature: -25 to +60 degree
- Storage temperature: -40 to +80 degree
- Relative humidity: 5-95%
- The cooling way: Natural cooling
- The atmospheric pressure: 80-106Kpa
- The altitude: 2000M or less
* Images are for illustration only; actual product may vary.
