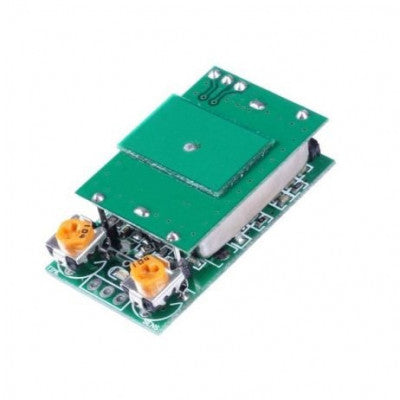

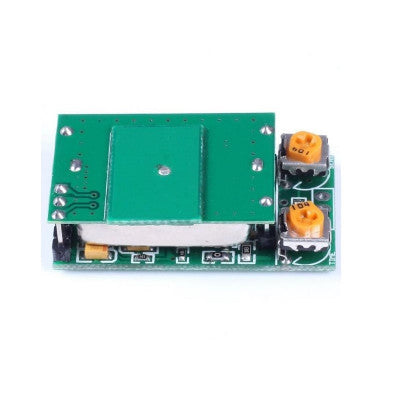

HFS-DC06 5.8G DC5V Microwave Motion Sensor Module
Radar sensor for detecting, locating, and tracking objects up to 4 meters away.
- Model: HFS-DC06
- Frequency: 5.8GHz
- Waveband: ISM band
- Input Voltage: 5V (Stable)
- Minimum Input Current: 22.4mA
- Output Type: High-level signal
- Sensing distance: 4m
- Sensing Angle: 180 degrees
Top Features:
- 4-meter sensing distance
- 180-degree sensing angle
- 5.8GHz frequency
- High-level signal output
These Radar sensors are used for detecting, locating, tracking, and recognizing objects of various kinds at considerable distances. It operates by transmitting electromagnetic energy toward objects, commonly referred to as targets, and observing the echoes returned from them. The module has a range of up 4 meters and only requires stable 5V to be powered. The user may vary the orientation of the module to get the best coverage.
Applications:
- Intruder alarms
- Occupancy Modules
- Object Detection
Precautions:
- The supply current should be greater than 30mA to drive the module
- The voltage should be stable and cannot have large fluctuations
- Avoid installing next to a large metal body or in a fully enclosed metal shell

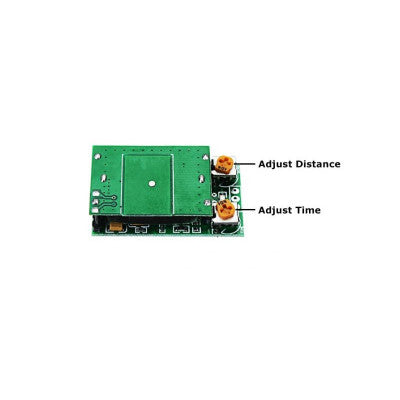

To increase the range, sensitivity, and time, turn the preset clockwise. To reduce, turn it anti-clockwise. The guaranteed sensing range is 4m, but the sensor has been tested to work up to 20m under the right conditions.
Package Includes:
- 1 x HFS-DC06 5.8G DC5V Microwave Motion Sensor Module for LED Lighting Doppler Effect
Images are for illustration only; actual product may vary.
