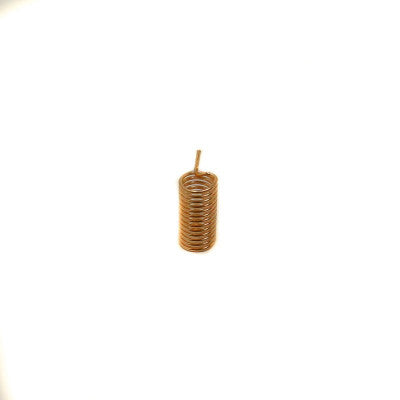

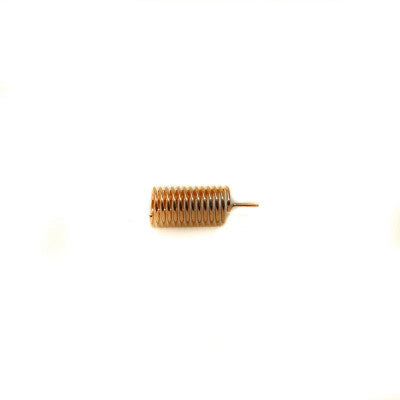

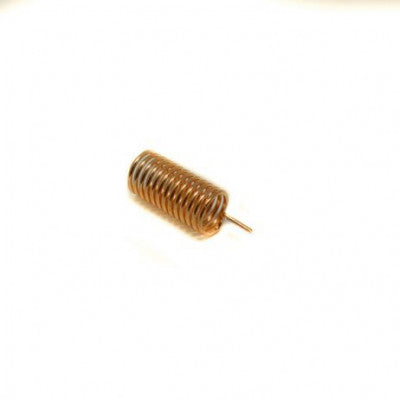

Helix Antenna 433 Mhz
An affordable and compact helical antenna for Sub GHz applications
- Model: LWC-433-HELIX-15
- Frequency Range: 433 MHz
- Gain: Approx 0.5 dBi (depends on PCB ground plane)
- Impedance: 50
- VSWR: < 1.5
- Polarization: Vertical
- Power Handling (W): 10
- HPBW: H: 3600 ; V: 30
- Connector: Direct Solder
- Housing: PB (Passivated)
- Operating Temperature (C): -30 to 60
- Humidity: 5 - 95%
- Length (mm): 23
- Diameter (mm): 9
- Weight (gm): 1.2
Top Features:
- Compact Size
- Low Cost
- Right Angle version available on request
- Tin and Nickel plated for corrosion-free
A helical antenna is an antenna consisting of one or more conducting wires wound in the form of a helix. This helical antenna, made of one helical wire, has been widely used in telecommunication for its low cost and compact size. It is suitable for Sub GHz applications and Smart Meters. The antenna is designed with a rubber sleeve to protect from sparks.
The package includes 1 x Helix Antenna 433 Mhz. It is a versatile antenna with a frequency range of 433 MHz and a gain of approximately 0.5 dBi (depending on the PCB ground plane). The antenna has an impedance of 50 and a VSWR of less than 1.5, with vertical polarization.
With a power handling capacity of 10W, this helical antenna is housed in PB (Passivated) material, suitable for operating temperatures ranging from -30 to 60 degrees Celsius. It has a length of 23mm, a diameter of 9mm, and weighs 1.2 grams.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
