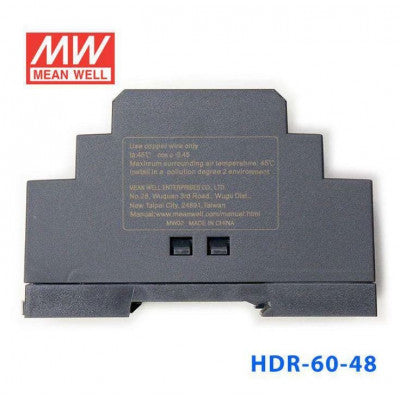

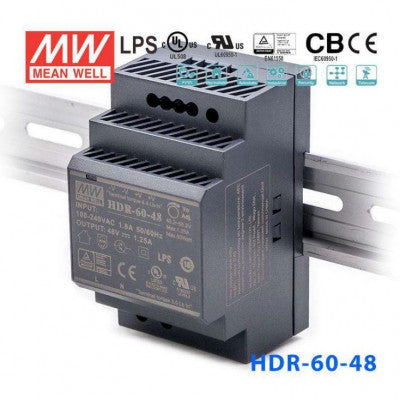

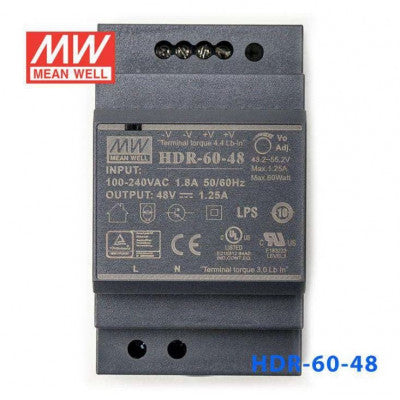

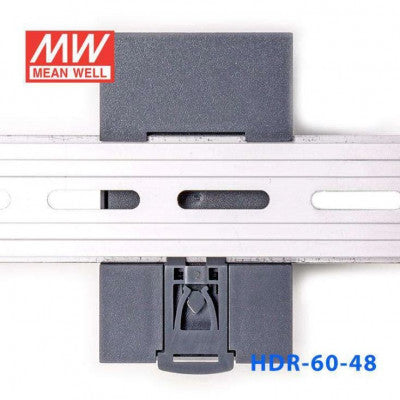

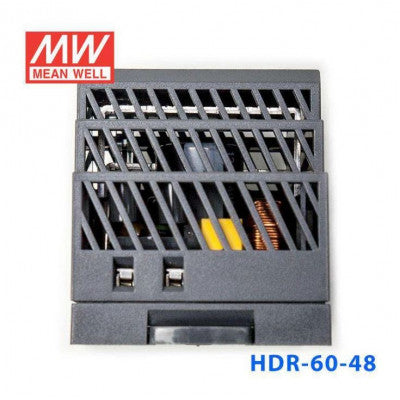

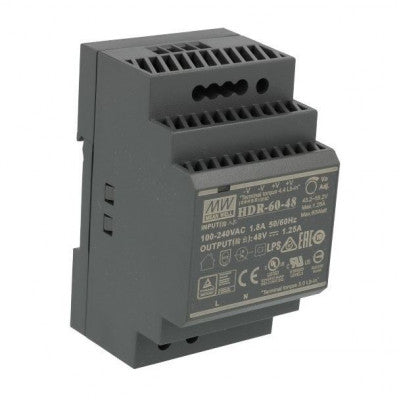

HDR-60 Ultra Slim DIN Rail Type Power Supply
60W Ultra Slim DIN Rail Type Power Supply with Adjustable Voltage
- Output Voltage: 48V
- Type: DIN Rail Type
- Approx. Wattage: 60W
- Features: Standard, Voltage Adjustable
- Series: HDR (Ultra Slim)
- Mechanical Form: Enclosed
- Warranty: 3 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 100-240V auto-select
Top Features:
- Plastic case
- Step shape design
- Compact size, 1SU~3SU width (DIN EN43880)
- Isolation class II
The HDR-60 Ultra Slim DIN Rail Type Power Supply is designed for industrial applications. It features an output voltage of 48V and a wattage of 60W. The unit is enclosed in a plastic case with a compact size, suitable for DIN rail mounting. The voltage is adjustable, and it comes with a 3-year warranty.
- AC Input Voltage Range: 85 VAC to 264 VAC, 120 VDC to 370 VDC
- AC Inrush Current (max.): COLD START 30A/115VAC 60A/230VAC
- Overload Protection Range: 105 ~ 160% rated output power
- Overload Protection Type: Constant current limiting, recovers automatically after fault condition is removed
- Over Voltage Protection Range: 56.5 ~ 64.8V
- Over Voltage Protection Type: Shut down output voltage, re-power on to recover
- Withstand Voltage: I/P-O/P: 3KVAC
- Working Temperature: 30 ~ +70 (Refer to "Derating Curve")
The HDR-60 Ultra Slim DIN Rail Type Power Supply meets safety standards UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1 approved. It is designed according to EN50178 and TUV EN60950-1. The unit also complies with EMC standards EN55032(CISPR32), EN61000-3-2, EN61000-3-3SETUP.
- Dimension (LxWxH): 52.5x90x54.5
For more detailed information, refer to the related documents: HDR-60 Datasheet, HDR-60-48 Test Report, CE Certificate (HDR-60), UL Certificate (HDR-60), CB Certificate (HDR-60), EMC Certificate (HDR-60).
