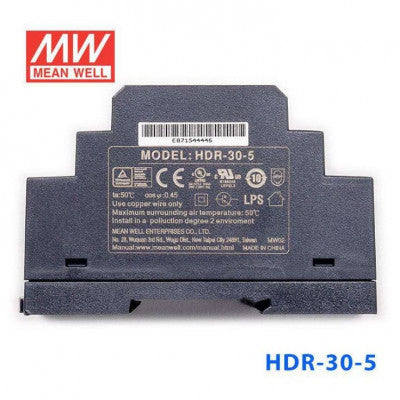

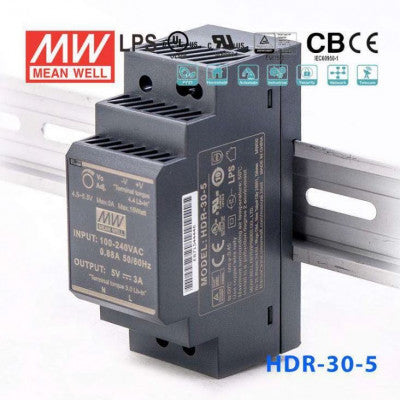

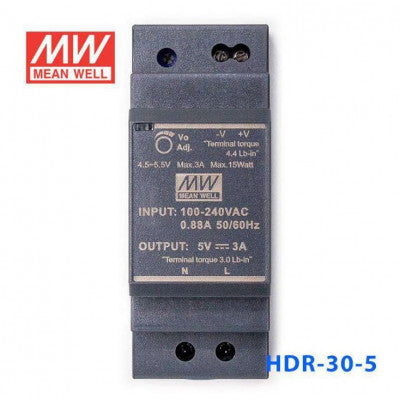

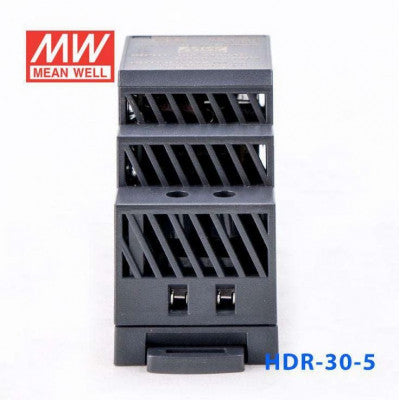

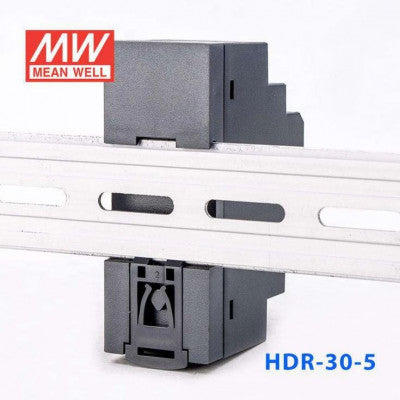

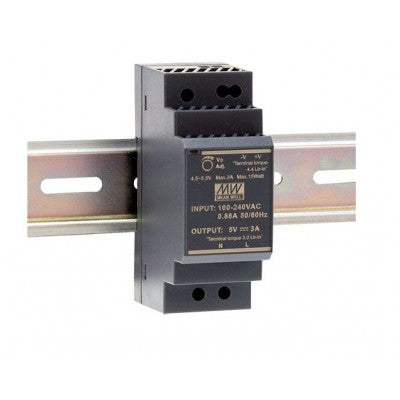

Ultra Slim DIN Rail Type Power Supply - HDR Series
15W Output Voltage Adjustable Power Supply for Industrial Use
- Output Voltage: 5V
- Type: DIN Rail Type
- Approx. Wattage: 15W
- Features: Standard, Voltage Adjustable
- Series: HDR (Ultra Slim)
- Mechanical Form: Enclosed
- Warranty: 3 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 100-240V auto-select
Top Features:
- Plastic Case, Step Shape Design
- Compact size, DIN EN43880 compatible
- Adjustable DC output voltage
- Suitable for building automation
The Ultra Slim DIN Rail Type Power Supply from the HDR series is a versatile solution for industrial applications. With an output voltage of 5V and a wattage of 15W, this power supply is designed for reliability and efficiency.
- AC Input Voltage Range: 85 VAC to 264 VAC, 120 VDC to 370 VDC
- AC Inrush Current (max.): 0.88A/115VAC, 0.48A/230VAC
- Temperature Coefficient: ±0.03%/? (0 ~ 50?) RH non-condensing
- Overload Protection Range: 110 ~ 160% rated output power
- Overload Protection Type: Constant current limiting with in 50% - 100%, recovers automatically
- Over Voltage Protection Range: 5.75 ~ 7.5V
- Over Voltage Protection Type: Shut down output voltage, auto-recovery
- Withstand Voltage: I/P-O/P: 3KVAC
- Working Temperature: -30 ~ +70? (Refer to "Derating Curve")
The power supply meets safety standards such as UL60950-1, UL508, TUV EN61558-2-16, and IEC60950-1. It is also EMC compliant with standards like EN55032(CISPR32) and EN61000-3-2.
For detailed technical information, refer to the related documents including the HDR-30 Datasheet, Test Report, and various certificates.
*Images are for illustration only; actual product may vary.
