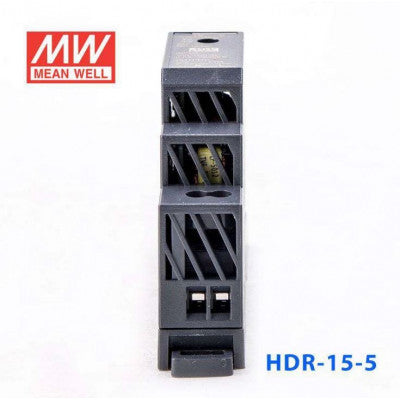

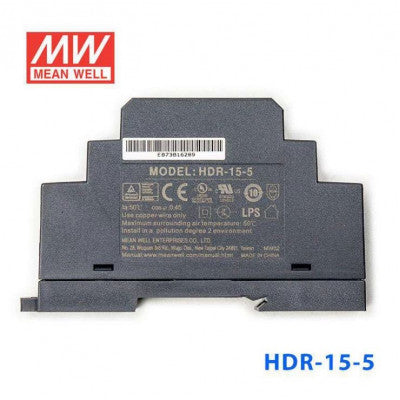

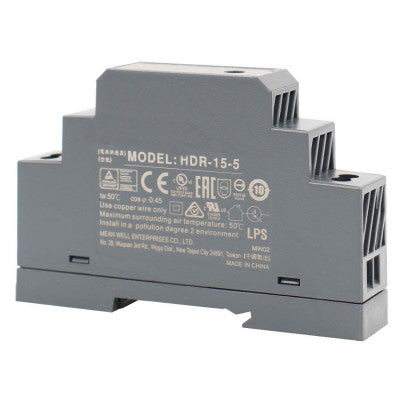

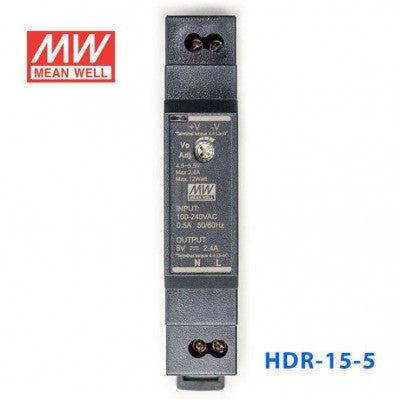

Ultra Slim DIN Rail Type 15W Power Supply
Compact and versatile power supply for industrial and household applications.
- Output Voltage: 5V
- Type: DIN Rail Type
- Approx. Wattage: 15W
- Features: Standard, Voltage Adjustable
- Series: HDR (Ultra Slim)
- Mechanical Form: Enclosed
- Warranty: 3 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 100-240V auto-select
Top Features:
- Plastic Case
- Step Shape
- Compact size, 1SU~3SU width (DIN EN43880)
- Isolation class II

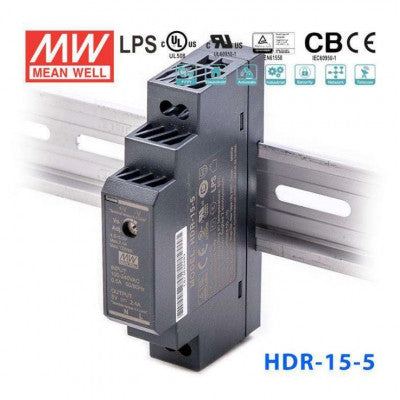

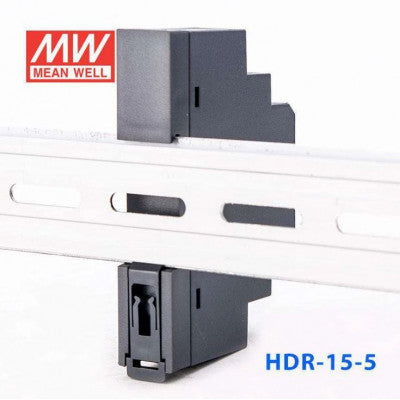

This Ultra Slim DIN Rail Type 15W Power Supply is suitable for building automation and control of household appliances. It features DC output voltage adjustability and has a no-load power consumption of less than 0.3W. The power supply can be easily assembled on an industrial rail TS-35/7.5 or 15.
Specifications:
- AC input voltage range: 85 VAC to 264 VAC, 120 VDC to 370 VDC
- AC inrush current (max.): COLD START 25A/115VAC 45A/230VAC
- TEMP. COEFFICIENT: ±0.03%/? (0 ~ 50?) RH non-condensing
- Overload protection Range: 110 ~ 145% rated output power
- Overload protection Type: Constant current limiting, recovers automatically after fault condition is removed
- Over voltage protection Range: 5.75 ~ 6.75V
- Over voltage protection Type: Protection type: Shut off o/p voltage, clamping by zener diode
- Withstand voltage: I/P-O/P: 3KVAC
- Working temperature: -30 ~ +70? (Refer to "Derating Curve")
- Safety standards: UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1 approved; Design refer to EN50178, TUV EN60950-1
- EMC standards: EN55032(CISPR32), EN55032(CISPR32), EN61000-3-2, EN61000-3-3
- SETUP, RISE TIME: 2000ms, 80ms/230VAC 2000ms, 80ms/115VAC at full load
- Dimension (LxWxH): 17.5x90x54.5
For more detailed information, you can refer to the following documents:
- HDR-15 Datasheet
- HDR-15-5 Test Report
- CE Certificate (HDR-15)
- UL Certificate (HDR-15)
- CB Certificate (HDR-15)
- EMC Certificate (HDR-15)
* Images are for illustration only; actual product may vary.
