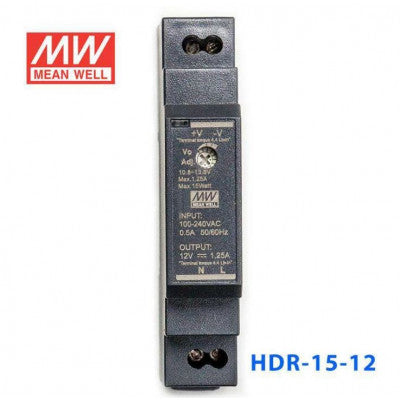

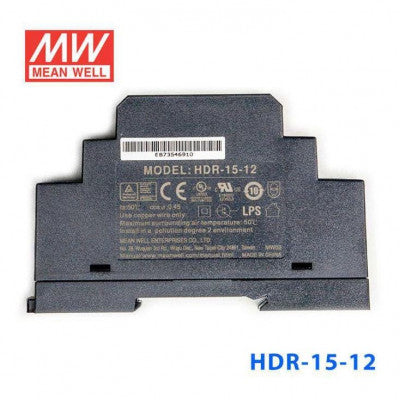

Ultra Slim DIN Rail Type 12V Power Supply
Compact and versatile power supply for building automation and household appliances.
- Output Voltage: 12V
- Type: DIN Rail Type
- Approx. Wattage: 15W
- Features: Standard, Voltage Adjustable
- Series: HDR (Ultra Slim)
- Mechanical Form: Enclosed
- Warranty: 3 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 100-240V auto-select
Top Features:

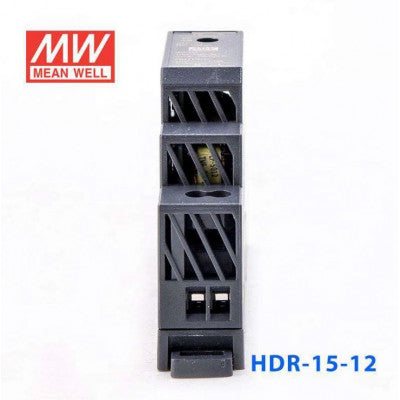

- Plastic case, step shape
- Compact size, DIN EN43880 compatible
- Adjustable DC output voltage

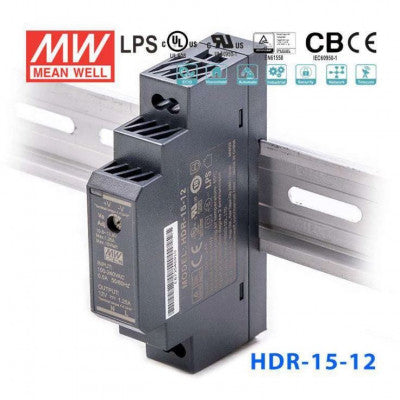

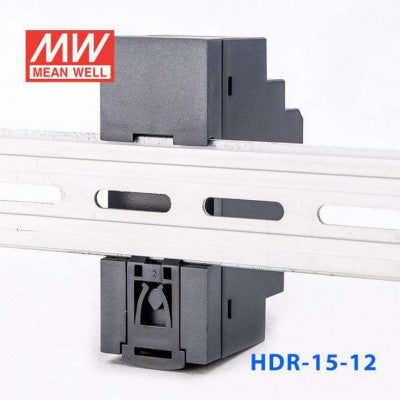

- Suitable for industrial rail TS-35/7.5 or 15
The Ultra Slim DIN Rail Type 12V Power Supply is designed for building automation and control of household appliances. It features a plastic case with a step shape and offers a compact size suitable for DIN EN43880 standards. The DC output voltage is adjustable, and it can be assembled on industrial rails TS-35/7.5 or 15.
- AC Input Voltage Range: 85 VAC to 264 VAC, 120 VDC to 370 VDC
- AC Inrush Current (max.): COLD START 25A/115VAC 45A/230VAC
- Temperature Coefficient: ±0.03%/? (0 ~ 50?) RH non-condensing
- Overload Protection Range: 110 ~ 145% rated output power
- Overload Protection Type: Constant current limiting, recovers automatically after fault condition is removed
- Over Voltage Protection Range: 14.2 ~ 16.2V
- Over Voltage Protection Type: Shut off output voltage, clamping by zener diode
- Withstand Voltage: I/P-O/P: 3KVAC
- Working Temperature: -30 ~ +70? (Refer to "Derating Curve")
- Safety Standards: UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1 approved; Design refers to EN50178, TUV EN60950-1
- EMC Standards: EN55032(CISPR32), EN55032(CISPR32), EN61000-3-2, EN61000-3-3
- Setup, Rise Time: 2000ms, 80ms/230VAC 2000ms, 80ms/115VAC at full load
- Dimension (LxWxH): 17.5x90x54.5
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
*Images are for illustration only; actual product may vary.
