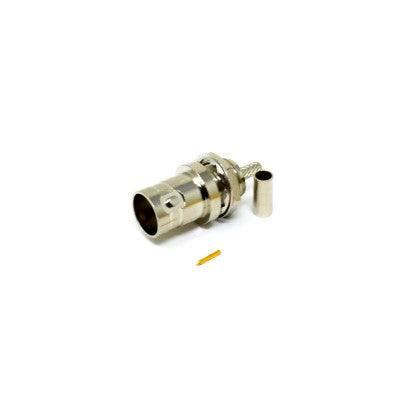

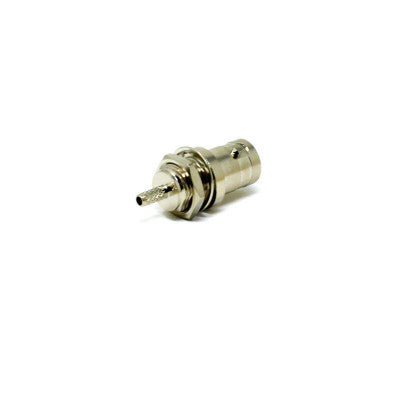

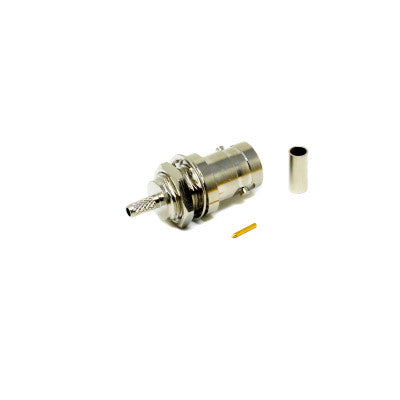

HD-SDI BNC Connector For Cable Female Vertical Type 180 Degree Crimp
Designed for terminating industry-standard 50 ohm and 75-ohm cables with durability and perfect design.
- Brand: ElecBee
- Orientation: Straight
- Gender: Male
- Mounting Type: Panel Mount / Cable
- Termination Style: Solder Type
- Mounting Feature: Bulkhead
- Function: Other
- Polarity: Standard
- Body Material: Copper
- Body Plating: Nickel Plating
- Impedance: 50/70 ohms
- Shield Termination: Crimp
Top Features:
- Compact design for space-saving installation
- Easy quick connect and disconnect coupling
These connectors are suitable for a wide range of applications including antennas, cable assemblies, automotive, radios, video, broadcast, telecom, and more.
Electrical Characteristics:
- Impedance: 50 ohm
- Frequency Range: 0~1 GHz for 75 ohm
- VSWR: Straight type 1.22/3GHz / R/A type 1.30/3GHz
- Dielectric Withstanding Voltage: 1500 V rms
- Working Voltage: 500 V rms
- Center Contact Resistance: 1.5 m (Milliohms max.)
- Outer Contact Resistance: 2.0 m (Milliohms max.)
- Insulation Resistance: 5 103 m (Milliohms min.)
Mechanical Characteristics:
- Coupling: Bayonet
- Contact Retention: 6 lbs min.
- Mating Durability: 500 cycles
Environmental Characteristics:
- Temperature: Teflon -55~+155 / POM -40~+60
- Coupling Nut Retention: 100 lbs. min.
- Vibration: MIL-STD-202 Meth. 204
- Corrosion Resistance: MIL-STD-202 Meth. 101
Package Includes: 1 x HD-SDI BNC Connector For Cable Female Vertical Type 180 Degree Crimp
*Images are for illustration only; actual product may vary.
