HCNW4506 Optocoupler with AlGaAs LED
An optocoupler with high gain photo detector for improved inverter efficiency.
- Storage Temperature: -55 to 125 °C
- Operating Temperature: -40 to 100 °C
- Average Input Current: 25 mA
- Peak Input Current: 50 mA
- Peak Transient Input Current: 1 A
- Reverse Input Voltage: 3 V
- Average Output Current: 15 mA
- Resistor Voltage: -0.5 VCC V
- Output Voltage: -0.5 to 30 V
- Supply Voltage: -0.5 to 30 V
- Output Power Dissipation: 100 mW
- Total Power Dissipation: 145 mW
Features:
- Performance specified for IPM applications
- Fast propagation delays: tPHL = 480 ns, tPLH = 550 ns
- Minimized Pulse Width Distortion: 450 ns
- 15 kV/µs minimum common mode transient immunity
- CTR > 44% at IF = 10 mA
- Safety approval: UL Recognized -5000 V rms / 1 min.
The HCNW4506 optocoupler features an AlGaAs LED optically coupled to a high gain photo detector. With minimized propagation delay difference between devices, it is an excellent solution for improving inverter efficiency by reducing switching dead time. The on-chip 20 k? output pull-up resistor can be enabled by shorting output pins 6 and 7, eliminating the need for an external pull-up resistor in common IPM applications.
Specifications and performance plots are provided for typical IPM applications, making it suitable for various uses like IPM isolation, isolated IGBT/MOSFET gate drive, AC and brushless DC motor drives, and industrial inverters.
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or call +91-8095406416.

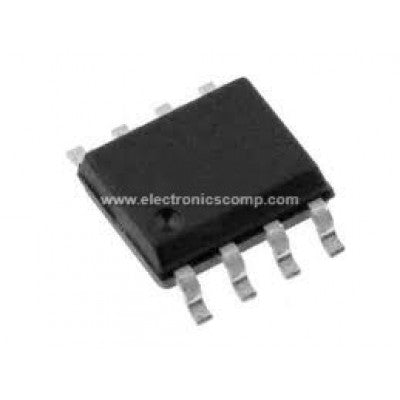

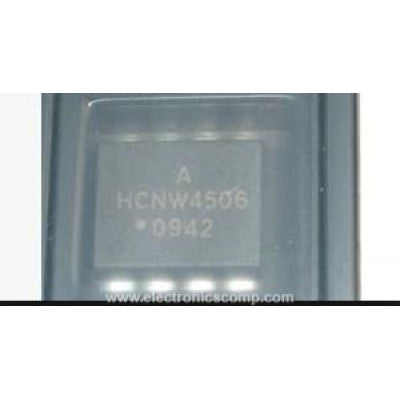

*Images are for illustration only; actual product may vary.
