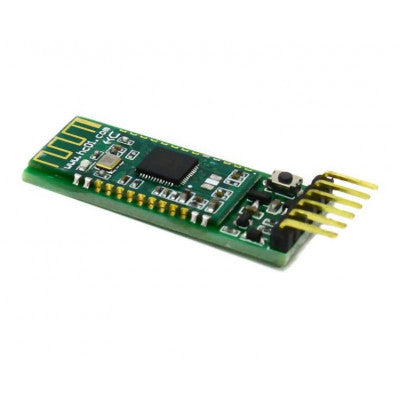

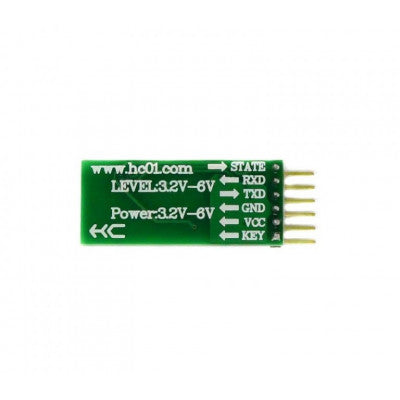

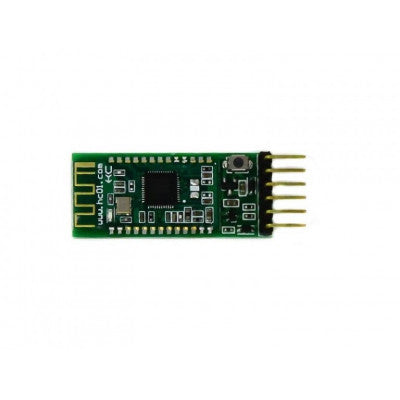

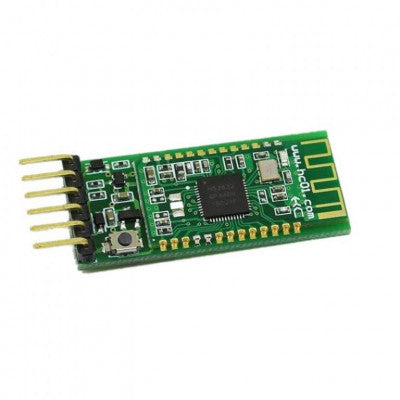

HC-42 6pin Bluetooth 5.0BLE Serial Port Module
A new generation digital transmission module based on Bluetooth BLE V5.0 protocol.
- Part Number: HC-42D
- Version: BLE 5.0
- Module Size: 37mm * 15.6 mm
- Frequency Band: 2.4G
- Air Rate: 1Mbps/2Mbps
- Working Voltage: 1.8~3.6V
- Antenna: PCB internal antenna
- Shutdown Current: 0.3A
- Communication Interface: UART
- Sensitivity: -96dBm@1Mbps
- Level: 1.8~3.6V (Same as Working Voltage)
- Working Humidity: 10~90
- Transmit Power: -40~4dBm
- Storage Temperature: -40~+85
- Reference Distance: 40m/2Mbps BLE 5.0
- Working Temperature: -25~+75
Top Features:
- Bluetooth BLE V5.0 protocol
- Low power consumption
- Quickly transfer small amounts of data
- Perfect for IoT devices
The HC-42 6pin Bluetooth 5.0BLE Serial Port Module is a cutting-edge digital transmission module that operates on the Bluetooth BLE V5.0 protocol. With a working frequency band of 2.4GHz ISM and GFSK modulation method, this module ensures efficient data transmission. The maximum transmit power of 4dBm and receiving sensitivity of -96dBm make it a reliable choice for various applications.
Utilizing the BLE protocol, this module stands out for its low power consumption compared to traditional Bluetooth, making it ideal for IoT devices that require long battery life. The compact size and internal PCB antenna further enhance its usability in diverse projects.
Note: Product dimensions may have a 2% error, and color may vary due to light effects.
Package Includes:
- 1 x HC-42 6pin Bluetooth 5.0BLE Serial Port Module
* Images are for illustration only; actual product may vary.
