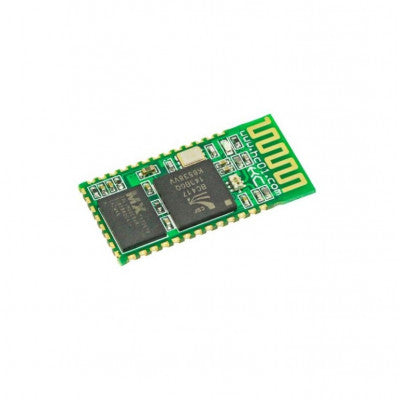

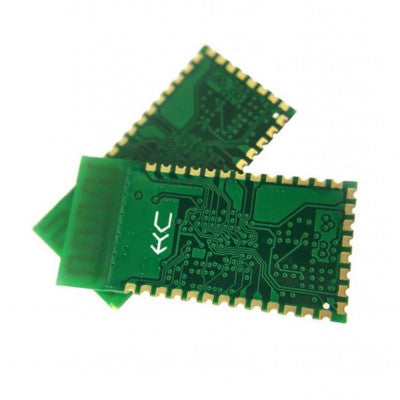

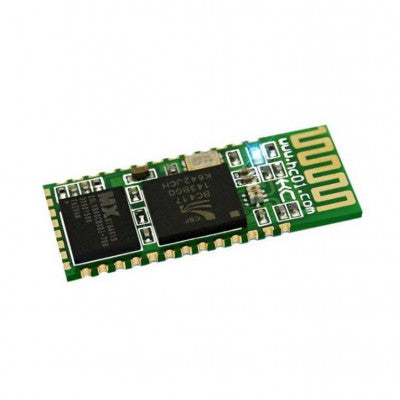

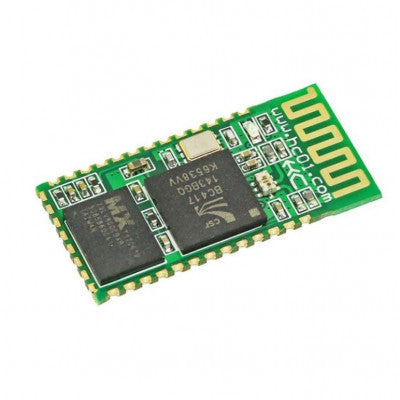

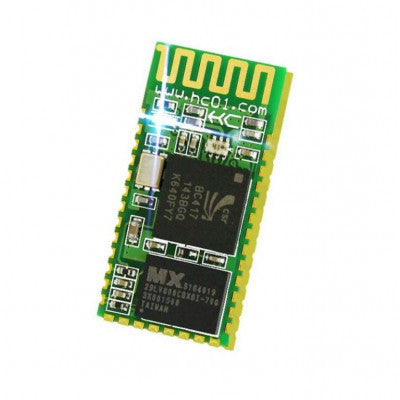

HC-06 Wireless Bluetooth Module
Serial port Bluetooth module with Bluetooth V2.0+EDR
- Model: HC-06 (without Baseplate)
- Operating Voltage: 3.3V
- Operating Current: 40mA
- Bluetooth version: V2.0+EDR
- Default Baud Rate: 9600,8,1,n
- Signal coverage: 30ft
- Operating temperature range: -20C to +55C
- Length (mm): 27
- Width (mm): 13.20
- Height (mm): 2
- Weight (gm): 5
Top Features:
- Works with any USB Bluetooth adapters.
- Default Baud Rate: 9600,8,1,n.
- Built-in antenna.
- Coverage up to 30ft.
The HC-06 Wireless Bluetooth Module is a Serial port Bluetooth module with fully qualified Bluetooth V2.0+EDR (Enhanced Data Rate) 3Mbps Modulation. It uses CSR Blue core 04-External single-chip Bluetooth with CMOS technology and frequency hopping spread spectrum technique (FHSS) to avoid interference with other devices and enable full duplex transmission. The module operates in the frequency range from 2.402 GHz to 2.480GHz.
HC-06 is the best option for short-distance wireless communication needs, with a range of less than 100 meters. It is easy to interface and communicate with, making it one of the cheapest solutions for wireless communication in the market. The module consumes minimal power, suitable for battery-operated mobile systems, and can be interfaced with almost all controllers or processors using the UART interface.
Applications:
- Hobby projects
- Engineering applications
- Robotics
- Mobile Phone Accessories
- Servers
- Computer Peripherals
- Sports and Leisure Equipment
- USB Dongles
Package Includes: 1 x HC-06 Wireless Bluetooth Module without Baseplate
