HC-05 6 Pin Wireless Serial Bluetooth Module
A versatile Bluetooth module for seamless wireless communication with microcontrollers.
- Input Supply voltage: 3.6 ~ 6V
- Input current: 50mA
- Maximum Operating Range: 10m
- Operating Frequency: 2.4GHz ISM band
- Modulation: GFSK (Gaussian Frequency Shift Keying)
- Emission power: 4dBm, Class 2
- Sensitivity: -84dBm at 0.1% BER
- Operating Temperature: -20 ~ +75°C
- Length: 26.85mm
- Width: 13.13mm
- Height: 1.9mm
- Weight: 2g
Top Features:
- Working current: 30 mA for matching, 8 mA for communication
- No dormancy current
- Bluetooth V2.0 protocol standards
- Bluetooth serial port profiles

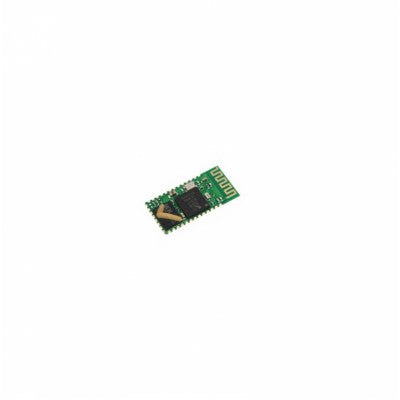

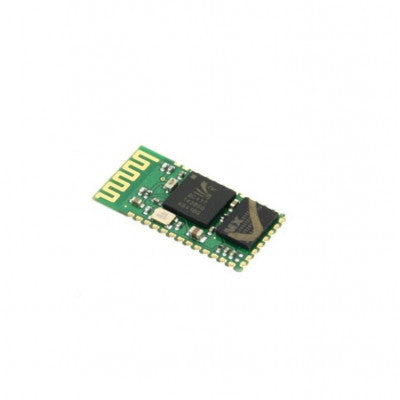

The HC-05 Wireless Bluetooth Module without Baseplate is a slave-only device, suitable for connecting to phones and computers with Bluetooth. It is ideal for embedded projects, industrial applications, and computer devices. For connecting to other slave devices, a master module like the HC-05 version is required.
Applications include GPS navigation systems, water and electricity meter reading systems, and seamless connections with computers and Bluetooth adapters. The module uses the CSR mainstream Bluetooth chip and supports Bluetooth Specification v2.0+EDR. It has a default baud rate of 9600 and supports asynchronous speeds of 2.1Mbps (Max) and synchronous speeds of 1Mbps. Security features include authentication and encryption.
Package Includes: 1 x HC-05 Wireless Bluetooth Module without Baseplate
* Images are for illustration only; actual product may vary.
