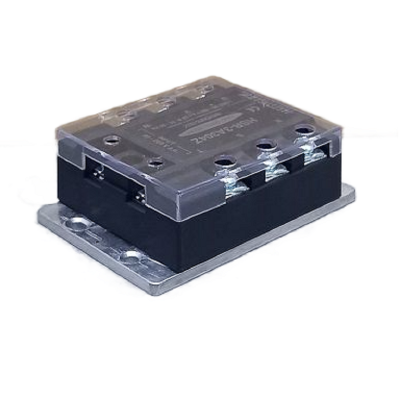

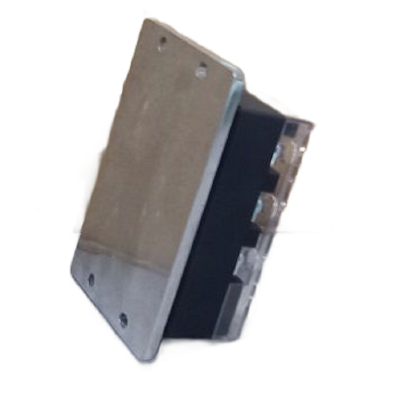

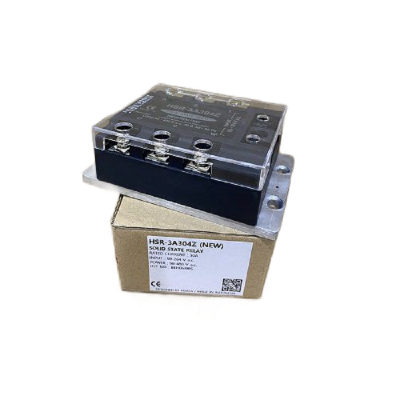

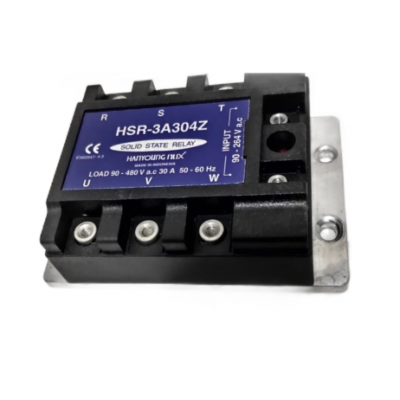

HSR-3A304Z Solid State Relay
Effortlessly manage three-phase systems with robust performance and solid-state reliability.
- Power voltage: 100-240 VAC
- Operating voltage range: 90-264 VAC
- Impedance: Max. 72 k
- Operating voltage: Min. 75 VAC
- Reset voltage: Max. 40 VAC
- Input current: 240 VAC/9 mA(+4)
- Rated load voltage: 100-440 VAC
- Load voltage range: 90-480 VAC
- Peak voltage (non-repetition): 1200 V
- Rated load current: 30 A
- Frequency: 50/60 Hz
- Surge current: 315 A
- Leakage current: Max. 20 mA
- ON state voltage drop: 1.8 V
- Min. Operating current: 1 A
- Zero cross-switching: 1/2 cycle + 1 ms max.
- Random switching: Max. 1 ms
- Insulation resistance: 500 VDC, 100 M (input/output and among cases)
- Dielectric strength: 2500 VAC (60 Hz for one minute)
- Vibration resistance: 10-55 Hz, double amplitude: 1.5 mm, Each X- Y-Z axis for 2 hours
- Storage temperature: -30-90 C
- Ambient temperature & humidity: -20-80 C, 45-85 % R.H.
Features:
- Three-phase control for efficient power management.
- Solid state relay ensures long-term performance.
- Robust construction guarantees durability in various environments.
- Compact design for space-saving installation.
The HSR-3A304Z Solid State Relay allows for easy integration into automation setups, complemented by overcurrent and overvoltage protection. Benefit from the zero-crossing turn-on feature that reduces electrical stress, and monitor the status swiftly with the LED indicator. The built-in snubber network helps curb voltage spikes, enhancing overall system safety.
Upgrade your power control with the advanced features of the HSR-3A304Z Solid State Relay. For more technical details, refer to the Datasheet in the attachment section.
Images are for illustration only; actual product may vary.
